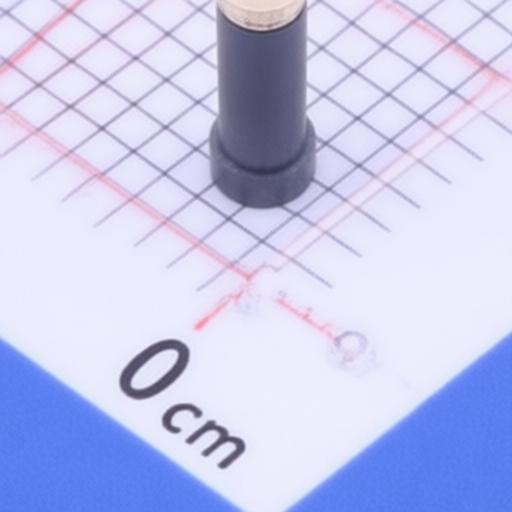

High conductivity antenna pin BAT WIRELESS BWCD-L5.5W2.0H3.0 suitable for GPS and NB IoT wireless applications
High conductivity antenna pin BAT WIRELESS BWCD-L5.5W2.0H3.0 suitable for GPS and NB IoT wireless applications
Specifications
Voltage Rating :
36V
Type :
弹簧顶针(POGO PIN)
Overall Length/Height :
5.5mm
Contact Resistance :
30mΩ
Elastic Life :
10000次
Current Rating :
1.5A
Description :
5.5mm Length 1.5A 36V
Mfr. Part # :
BWCD-L5.5W2.0H3.0
Package :
SMD,D=2mm
Model Number :
BWCD-L5.5W2.0H3.0
Description

Product Overview

The Bat Wireless BWCD-L5.5W2.0H3.0 antenna pin is a critical component for signal transmission in electronic devices, ensuring stable electrical connections and high-frequency performance. Designed with a precision spring structure, it provides constant spring force for reliable contact between the antenna and PCB or module, even in vibrating environments. Its low-loss design, optimized process, and coaxial structure minimize insertion loss. With high conductivity, elasticity, wear resistance, and excellent high-frequency performance, this antenna pin is ideal for modern wireless applications including 5G and IoT, where signal stability is paramount. Typical applications span consumer electronics (smartphones, TWS earphones, smartwatches), automotive electronics (in-vehicle T-boxes, GPS antenna connections), industrial equipment (RFID readers, drone communication modules), and IoT devices (NB-IoT/LoRa modules, smart home devices).

Product Attributes

  • Brand: BAT WIRELESS
  • Model Number: BWCD-L5.5W2.0H3.0
  • Certifications: RoHS & REACH Complaint
  • Material: Gold-Plated Brass
  • Color: Gold
  • Mounting Type: SMD
  • Waterproof Rating: Yes
  • Customization: Customized services available

Technical Specifications

Specification Parameter Unit Notes
Antenna Type Antenna pin
Frequency Range 0-6000 MHz
Input Impedance 50
Contact Resistance 30 m
Insert Loss 0.15 dB @ 6GHz
Voltage Rating 36 V
Current Rating 1.5 A
Dimensions (L x W x H) 5.5 x 2.0 x 3.0 mm
Durability (Force) 7020 g
Durability (Cycles) 10000 Times
Weight 0.09 g
Operating Temperature -45 ~ +85
Storage Temperature -45 ~ +85

2512181046_BAT-WIRELESS-BWCD-L5-5W2-0H3-0_C2826550.pdf
