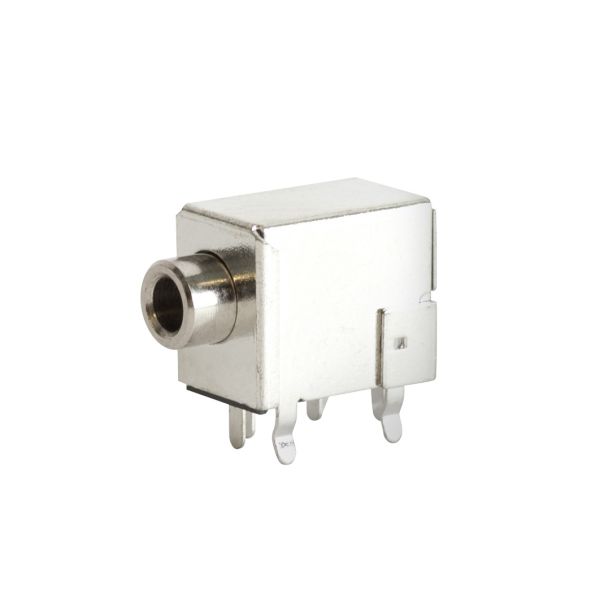

Tip and ring switch shielded audio jack low profile connector CUI SJ1-3535NS designed for audio circuits
Tip and ring switch shielded audio jack low profile connector CUI SJ1-3535NS designed for audio circuits
Specifications
Description :
Audio Connectors RoHS
Mfr. Part # :
SJ1-3535NS
Model Number :
SJ1-3535NS
Description

Product Overview

The SJ1-353XNS series audio jack from Same Sky is a shielded, low-profile connector designed for audio applications. It offers various switch options including no switch, tip switch, and tip and ring switch, providing flexibility for different circuit configurations. This audio jack is suitable for use in applications requiring reliable audio connectivity.

Product Attributes

  • Brand: Same Sky (formerly CUI Devices)
  • Shielded: Yes
  • Low Profile Design: Yes
  • RoHS Compliant: Yes
  • Warranty: One (1) year limited warranty

Technical Specifications

Model No.Switch OptionRated Input Voltage (Vdc)Rated Input Current (A)Contact Resistance (m)Insulation Resistance (M)Voltage Withstand (Vac)Insertion/Withdrawal Force (kg)Operating Temperature (C)Life (cycles)
SJ1-3533NSNo Switch121<50>1005000.3 - 3-25 to 855,000
SJ1-3534NSTip Switch121<50>1005000.3 - 3-25 to 855,000
SJ1-3535NSTip and Ring Switch121<50>1005000.3 - 3-25 to 855,000

Materials

ComponentMaterialPlating/Color
TerminalBrassTin
SpringStainless Steel
BushingBrassNickel
ShieldCold Rolled SteelNickel
HousingPBT (UL94V-0)Black
