Specifications
Description :
Quick Connects, Quick Disconnect Connectors RoHS
Mfr. Part # :
MU18-250DFX-BOTTLE
Model Number :
MU18-250DFX-BOTTLE
Description

3M Scotchlok Terminals

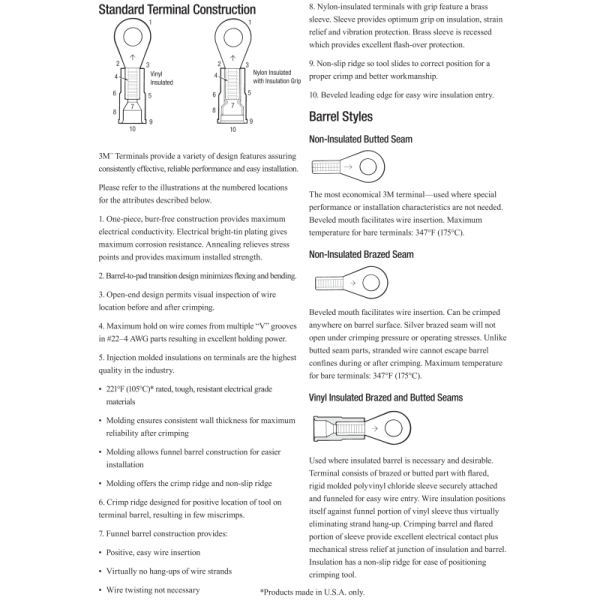

3M Scotchlok terminals are a premier line designed for effective and reliable performance across a broad application range, including demanding temperature and weather conditions. They feature design elements for easy installation, such as positive and easy wire insertion, elimination of strand hang-ups and wire twisting, and easy insulation entry. These terminals are available in various insulation types including heat shrink, nylon, and vinyl, and offer various barrel styles such as butted, brazed, seamless, or interlocking barrels. They are available in bottle or bulk packaging.

Product Attributes

  • Brand: 3M Scotchlok
  • Packaging Options: Bottle, Bulk

Technical Specifications

Product Number Conductor Size (AWG) Stud Size Insulation Material Barrel Style Terminals per Carton Terminals per Case RoHS Compliance
MH18-6R/LK 22 - 18 #6 Heat Shrink Brazed Seam - 250 Yes
MH18-6R/LX 22 - 18 #6 Heat Shrink Brazed Seam 25 125 Yes
MNG18-4R/SK 22 - 18 #4 Nylon with Insulation Grip Butted - 1000 Yes
MNG18-4R/SX 22 - 18 #4 Nylon with Insulation Grip Butted 100 500 Yes
MN18BCK-A 22 - 18 N/A Nylon Seamless - 10000 Yes
MN18BCX 22 - 18 N/A Nylon Seamless 100 500 Yes
MV18-6FB/SX 22 - 18 #6 Vinyl Brazed Seam 100 500 Yes
MVU18-6FB/SX 22 - 18 #6 Vinyl Butted 100 500 Yes
MU18-6FB/SX 22 - 18 #6 Non-Insulated Butted 100 500 Yes
MU18-6FB/SK 22 - 18 #6 Non-Insulated Butted - 1000 Yes
MNG18-6FFB/SX 22 - 18 #6 Nylon with Insulation Grip Butted 100 500 Yes
MNG18-6FFBK 22 - 18 #6 Nylon with Insulation Grip Butted - 1000 Yes
MVU18-6FFBK 22 - 18 #6 Vinyl Butted - 1000 Yes
M18-6FLK 22 - 18 #6 Non-Insulated Brazed Seam - 1000 Yes
MNG18-6FLK 22 - 18 #6 Nylon with Insulation Grip Butted - 1000 Yes
MVU18-6FLK 22 - 18 #6 Vinyl Butted - 1000 Yes
MU18-6FLK 22 - 18 #6 Non-Insulated Butted - 1000 Yes
MH18BCK 22 - 18 N/A Heat Shrink Seamless - 250 Yes
MNG18BCK 22 - 18 N/A Nylon with Insulation Grip Butted - 1000 Yes
MV18BCK 22 - 18 N/A Vinyl Seamless - 1000 Yes
MVU18BCK 22 - 18 N/A Vinyl Butted - 1000 Yes
MU18BCK 22 - 18 N/A Non-Insulated Butted - 1000 Yes
MNG18-47PX-A 22 - 18 N/A Nylon with Insulation Grip Insulation Grip 100 500 Yes
MVU18-47PX-A 22 - 18 N/A Vinyl Butted 100 500 Yes
MU18-47PX-A 22 - 18 N/A Non-Insulated Butted 100 500 Yes

2312051036_3M-MU18-250DFX-BOTTLE_C6330416.pdf
