Plug in terminal block screw connection right angle pins rated voltage 300V HCTL HC15EDGRM 3.81 3P V
Plug in terminal block screw connection right angle pins rated voltage 300V HCTL HC15EDGRM 3.81 3P V
Specifications
Current Rating :
8A
Number of Pins :
3P
Color :
绿色
Voltage Rating (Max) :
300V
Operating Temperature :
-40℃~+105℃
Pitch :
3.81mm
Connector Type :
板端/插座-闭口
Number of PINs Per Row :
3
Number of Rows :
1
Termination Style :
螺丝固定
Mounting Type :
弯针
Pin Structure :
1x3P
Description :
3 Position 3.81mm Pitch
Mfr. Part # :
HC15EDGRM-3.81-3P-V
Package :
Through Hole,Right Angle,P=3.81mm
Model Number :
HC15EDGRM-3.81-3P-V
Description

Product Overview

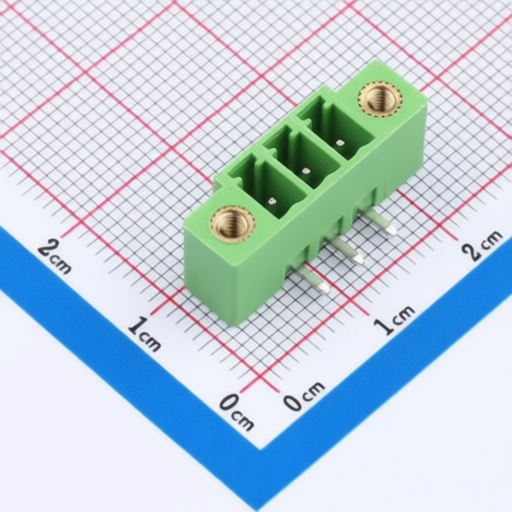

This is a plug-in terminal block featuring a screw connection and right-angle pins. Designed for robust electrical applications, it offers a rated voltage of 300V and a rated current of 8A. The terminal block is constructed with a PA66 UL94V-0 plastic body and brass nickel-plated pins, ensuring durability and reliable performance across a wide temperature range of -40 to +105.

Product Attributes

  • Brand: Huacantianlu Electronics
  • Origin: Shenzhen, China
  • Material (Body): PA66, UL94V-0
  • Material (Pins): Brass, Nickel Plated
  • Type: Plug-in Terminal Block
  • Configuration: Single Row, Screw Connection, Right-Angle Pins

Technical Specifications

Specification Value
Model Number HC15EDGRM-3.81-NP-X
Pitch 3.81mm
Rated Voltage 300V
Rated Current 8A
Contact Resistance 20m (Max)
Insulation Resistance 500M (DC500V)
Withstand Voltage AC1600V / 1Min
Operating Temperature Range -40 ~ +105
Instantaneous Temperature +250, 5 seconds
Pin Type R=Right-Angle Pin
Screw Type M=Screw
General Tolerance (X.X) 0.50
General Tolerance (X.XX) 0.30
General Tolerance (X.XXX) 0.10
General Tolerance (Angle) 3.0

2410171036_HCTL-HC15EDGRM-3-81-3P-V_C22365270.pdf
