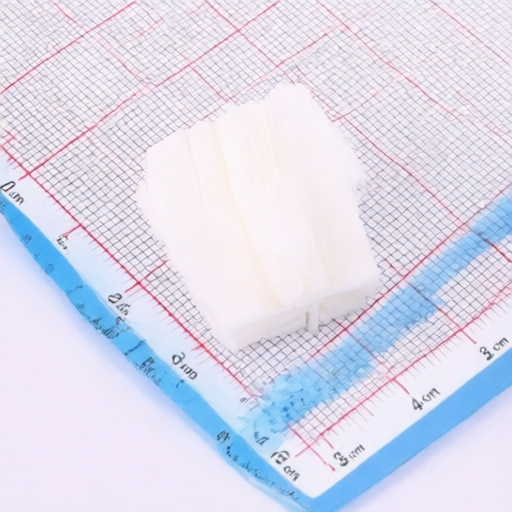

Wire cable with plastic latch and keyed polarization featuring Samtec IPBD-05-D-K connector solution
Wire cable with plastic latch and keyed polarization featuring Samtec IPBD-05-D-K connector solution
Specifications
Pitch :
4.2mm
Number of Rows :
2
colour :
米色
With Wings :
不带翅
Plastic Material :
PA
Number of PINs Per Row :
5
Number of Positions or Pins :
2x5P
Row Spacing :
4.2mm
With Locker :
带锁扣
Description :
4.2mm 2 5 4.2mm Locking Rectangular Connector Housings RoHS
Mfr. Part # :
IPBD-05-D-K
Model Number :
IPBD-05-D-K
Description

Product Overview

The PMSD/PMSDT (Double Row) and PMSS/PMSST (Single Row) series are discrete wire cable and component solutions featuring a .165" pitch. Available with PVC or Blue *Teflon cable (24 AWG only), these series offer various pin counts per row, optional keyed polarization, and multiple end and latch options. They are designed for board mating with IPBT connectors and are suitable for applications requiring specific wire lengths and current ratings per pin, with options for single or double-ended configurations. The *Teflon cable is intended for crimp applications only.

Product Attributes

  • Brand: Samtec
  • Cable Material (Options): PVC, Blue *Teflon
  • Pitch: .165"
  • Latch Material: Plastic

Technical Specifications

Series Pins Per Row Wire Gauge Assembled Length End Option Latch Option Current Rating (Per Pin)
PMSD/PMSDT (Double Row PVC/Teflon) 02, 03, 04, 05, 08, 10, 15* (Standard sizes) 24 AWG (Teflon only) "XX.XX" (Wire length in inches) S (Single End) LUS (Plastic Latch up, straight) 16 AWG: 10.3 A
PMSS/PMSST (Single Row PVC/Teflon) 02, 03, 04, 05, 08, 10, 15* (Standard sizes) 24 AWG (Teflon only) D (Double End) LDS (Plastic Latch down, straight) 18 AWG: 8.8 A
16, 18, 206 (20 AWG/600 volts), 22, 24 20 AWG: 5.7 A LUX* (Plastic Latch up, crossed) *(PMSD/PMSDT only) 22 AWG: 5.7 A
24 AWG: 5.2 A LDX* (Plastic Latch down, crossed) *(PMSD/PMSDT only) 24 AWG: 5.2 A
Keyed Polarization Option: K
Board Mates: IPBT
Contact Options: CC69L (Loose), CC69R (Full Reel)
Wire Gauge Options for Contacts: 2024 (20-24 AWG), 1620 (16-20 AWG)
Contact Plating: T (Tin)
Tooling (Hand Tool): CAT-HT-169-1620-13 (16-20 AWG), CAT-HT-169-2024-13 (20-24 AWG)
Tooling (Mini Applicator): CAT-MC-169-1620-XX-02 (16-20 AWG), CAT-MC-169-2024-XX-01 (20-24 AWG)
Tooling (Extraction Tool): CAT-EX-169-01
