High retention Amphenol 69146-210 connectors with dual beam contact design and pre stressed contacts
High retention Amphenol 69146-210 connectors with dual beam contact design and pre stressed contacts
Specifications
Plastic Color :
黑色
Open Top/Close Top :
开顶式
Number of Positions or Pins :
1x10
Pitch :
2.54mm
Description :
Open-Top 2.54mm Shunts, Jumpers
Mfr. Part # :
69146-210
Model Number :
69146-210
Description

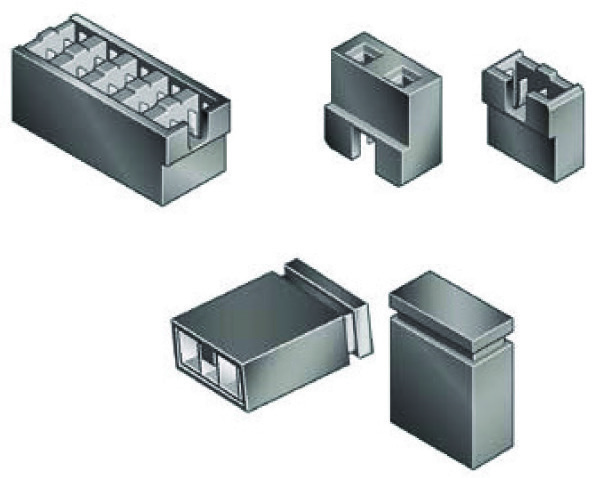

Product Overview

The Amphenol Dubox SHUNTS are reliable board-to-wire and board-to-board connectors designed for demanding applications. Featuring a dual beam contact design for high electrical performance and pre-stressed contacts for low insertion force, these shunts offer enhanced retention and signal protection with a 4-wall contact design. They are compatible with mezzanine applications, mate with short pins (5mm), and are stackable. Floating solder tails with self-centering capabilities ensure coplanarity, while a locating feature aids in soldering alignment and robotic placement. Constructed from high-temperature thermoplastic material, they are suitable for infrared and vapor phase reflow processes and comply with DIN41651, HE13, and BT D2632 specifications. These shunts are ideal for personal care devices, home automation, industrial robotics, and server storage.

Product Attributes

  • Brand: Amphenol
  • Product Series: Dubox SHUNTS
  • Housing Material: High temperature, black thermoplastic
  • Flammability Rating: UL94V-0
  • Pin Material: Phosphor Bronze
  • Plating Options: Gold or Tin over 1.27m (50in.) Nickel; GXT (0.76m on contact area); 2m tin on contact area
  • Certifications: RoHS compatible (Directive 2002/95/IEC), File No. E66906, File No. LR46923
  • Compliance: DIN41651, HE13, BT D2632
  • Packaging: Plastic bags

Technical Specifications

Specification Details
Mating Cycles (Durability) 50 (Gold), 25 (Tin)
Insertion Force 450gf max. per gold contact, 500gf max. per tin-lead contact
Withdrawal Force 30gf min. per gold contact, 30gf min. per tin-lead contact
Insertion Depth 4.85 mm (.191in.) min. (provides 3.81 mm (.015in.) wipe)
Current Rating 2.5A max. per contact
Insulation Resistance 50,000M min.
Contact Resistance 15M max. initial, 20M max. after environmental tests
Dielectric Withstanding Voltage 800V
Operating Temperature Range -65C to +125C
Product Drawing By 5-digit base part number
Product Specification BUS-12-071-gold, BUS-12-070-tin
Part Series (Shunt Low Profile, Single Row) 68786
Part Series (Shunt Low Profile, Double Row, Multi-position) 87606
Part Series (Shunt Standard, Single Row) 63429
Part Number Selector (Low Profile) 68786-XXLF (Plating: 2 for 0.76m GXT, 3 for 2m tin)
Part Number Selector (Multi-position) 69145-XXLF (XX = 04 to 20 positions)
Part Number Selector (Standard) 63429-XXLF (Plating: 2 for 0.76m GXT, 3 for 2m tin)
