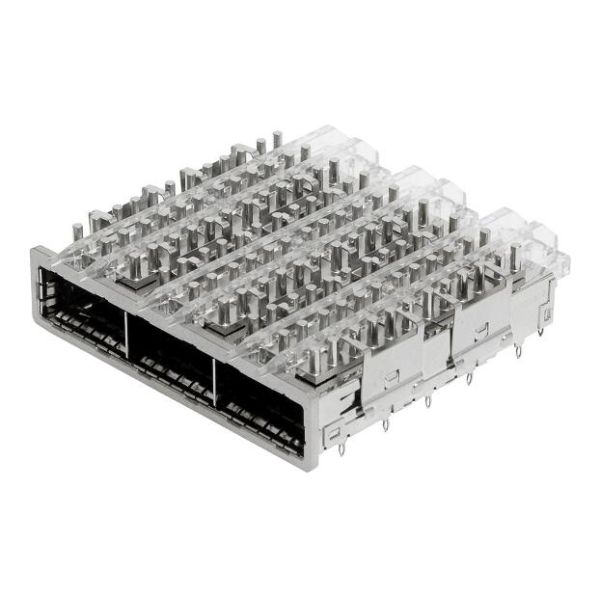

38 position 0.8mm pitch SMT connector Amphenol U90-1101-7000-BP for ExpressPort QSFP high speed data applications
38 position 0.8mm pitch SMT connector Amphenol U90-1101-7000-BP for ExpressPort QSFP high speed data applications
Specifications
Description :
Pluggable Connector Accessories RoHS
Mfr. Part # :
U90-1101-7000-BP
Model Number :
U90-1101-7000-BP
Description

Product Overview

The ExpressPort QSFP+ interconnect system is a high-density solution designed for high-speed data transfer. It features a 38-position, 0.8mm pitch SMT connector and a press-fit cage, enabling data transfer up to 28 Gbps per channel. This system replaces up to four standard SFP+ receptacles, offering increased port density and cost savings. It supports various standards including Gigabit Ethernet, InfiniBand, and SONET/SDH with different data rate options. The ExpressPort QSFP+ is available in single, ganged, and stacked configurations with multiple heat sink and light pipe options to accommodate diverse thermal requirements and port status indications.

Product Attributes

  • Brand: ExpressPort
  • System: QSFP+ interconnect system
  • Connector Type: 38 position 0.8mm pitch SMT connector
  • Cage Type: Press-fit cage
  • Certifications: RoHS, Halogen Free
  • Flammability Rating: UL 94V-0
  • Material (Housing): Glass reinforced, Lead Free Solder Reflow Process Compatible Thermo Plastic
  • Material (Contacts): Phosphor Bronze
  • Plating (Contacts): Matte tin (Solder Tails), Gold (Mating Area)
  • Resonance Dampening Feature: Conductive Polymer
  • EMI Options: Gasket, Spring Fingers
  • Packaging Options: Tape and Reel, Tray

Technical Specifications

Specification Details
Data Rate: Up to 28 Gbps/Channel
Supported Standards: Gigabit Ethernet, InfiniBand, SONET/SDH
Configurations: Single, Ganged, Stacked (1xN, 2xN)
PCB Thickness (Min): 1.44 mm (single mounted 1xN), 2.85 mm (Belly to Belly 1xN), 1.57 mm (2xN)
Contact Normal Force: 50 grams min.
Operating & Storage Temperature: -40 to +85 C
Operating Voltage: 30 VDC per contact
Operating Current: 0.5 A per contact
Differential Impedance: 100 +/-10
Mating Force (Max): 40 N
Unmating Force (Max): 30 N
Durability: 250 mating cycles
Insertion Force to PCB: 780 N (1 port), 1000 N (2 Ports), 1700 N (4 Ports), 2400 N (6 Ports)
Cage Mounting: Behind Bezel, Thru Bezel, Hybrid
SFF Supported Standards: ExpressPort QSFP+ Connector SFF-8682, Cage SFF-8683
Applications: Data Servers, SAN, NIC cards, Router/Switches, HBAS, Hubs

2412231715_Amphenol-U90-1101-7000-BP_C22090700.pdf
