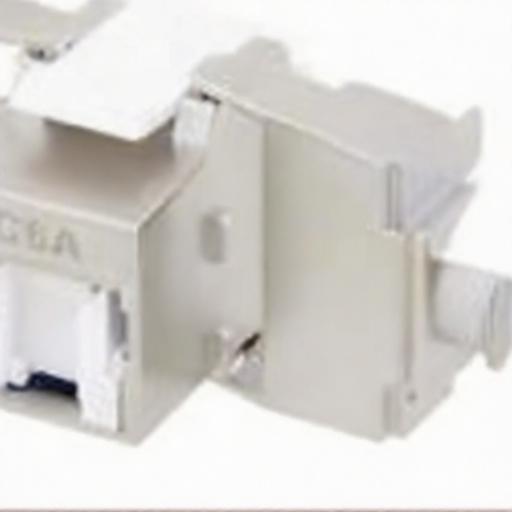

Category 6A Shielded Keystone Jack L-com RJTLC6AS-POE for IEEE 8023at Power over Ethernet Plus Networking
Category 6A Shielded Keystone Jack L-com RJTLC6AS-POE for IEEE 8023at Power over Ethernet Plus Networking
Specifications
Description :
Keystone Inserts RoHS
Mfr. Part # :
RJTLC6AS-POE
Model Number :
RJTLC6AS-POE
Description

Product Overview

This Category 6A Shielded Keystone Jack is designed for high-speed networking applications, including IEEE 802.3at Power over Ethernet Plus (PoE+). It meets stringent industry standards for performance and reliability, ensuring robust connectivity for demanding environments.

Product Attributes

  • Brand: L-COM
  • Material: Shielding: Nickel Silver Alloy; Keystone Jack Housing: PC, UL94V-0; Rear Housing: PC, UL94V-0; Keystone Jack Latch: PC+ABS, UL94V-0; Contact Holder: UL94-0; Shutter: PC, UL94V-0; Spring: SUS304; Jack Contacts: Phosphor Bronze, 50" Gold Plate; IDC Plastic: PC, UL94V-0; IDC Terminals: Phosphor Bronze, Tin Over Nickel.
  • Certifications: CE 2011/65/EU (RoHS DIRECTIVE)
  • Color Variations: May vary (refer to drawing for specific codes)
  • Origin: USA (implied by address)

Technical Specifications

Specification Details
Category 6A
Standard Compliance ANSI/TIA-568-C.2, IEC 60603-7, IEEE 802.3at Power over Ethernet Plus (PoE+), IEC 60512-99-001
Insertion Life 750 Mating Cycles
Plug Retention Force 11 LBF Min.
Wire Gauge Accommodation 22 to 24 AWG Solid
Operating Temperature Range -10C to 60C
Storage Temperature Range -40C to 68C
Insulation Resistance 500 M
Dielectric Withstanding Voltage 1000 V AC DC
Current Rating 1.5 Amps
Plug Compatibility RJ45 8P8C Plug
Packaging Individually packaged in accordance with L-COM Specification PS-0031
Dimensions (Approx.) Height: .76" [19.2mm], Width: .38" [9.75mm], Depth: .58" [14.7mm]

2310081630_L-com-RJTLC6AS-POE_C6441622.pdf
