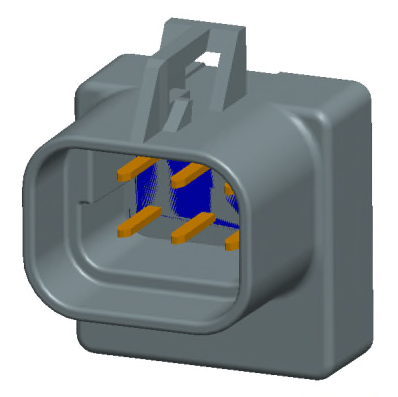

Electronic control unit terminator SINBON ACT active canbus device with operating temperature range
Electronic control unit terminator SINBON ACT active canbus device with operating temperature range
Electronic control unit terminator SINBON ACT active canbus device with operating temperature range
Electronic control unit terminator SINBON ACT active canbus device with operating temperature range
Specifications
Description :
Rectangular Connector Accessories RoHS
Mfr. Part # :
ACT
Model Number :
ACT
Description

Product Overview

The Active Canbus Terminator is designed to manage power and signal lines for electronic control units. It operates within a specified voltage range and offers robust protection with features like CAN High and CAN Low termination.

Product Attributes

  • Brand: DELPHI
  • Part Number (Connector Shell): 12052848
  • Part Number (Terminal): 12048074
  • Part Number (Wire Seal): 10248086
  • Part Number (Cavity Plug): 12059168
  • Part Number (Mating Connector): 12059168

Technical Specifications

SpecificationValueDetails
Rated Voltage13.5 Vdc
Operating Voltage Range6 TO 16 Vdc
Maximum Current0.1 Amp
Operating Temperature Range-40C TO 75C
Storage Temperature-55C TO +105C
CAN HIGH2600V +/-0,125V75 Ohm +/-5 Ohm Term. Resis
CAN LOW2600V +/-0,125V75 Ohm +/-5 Ohm Term. Resis
Power Line6 TO 16 Vda
Dimensions (Approx.)70.02.0 mmWidth
Dimensions (Approx.)50.02.0 mmLength
Dimensions (Approx.)11.50 mmHeight
Dimensions (Approx.)29.40.3 mm
Dimensions (Approx.)28.920.3 mm
Dimensions (Approx.)28.40 mm

2412061703_SINBON-ACT_C19111560.pdf
