Specifications
Description :
Terminal Block Accessories RoHS
Mfr. Part # :
1SNA511024R0500
Model Number :
1SNA511024R0500
Description

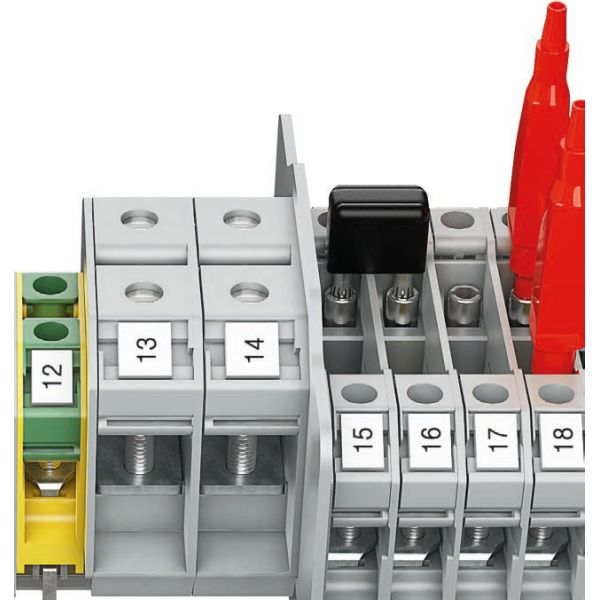

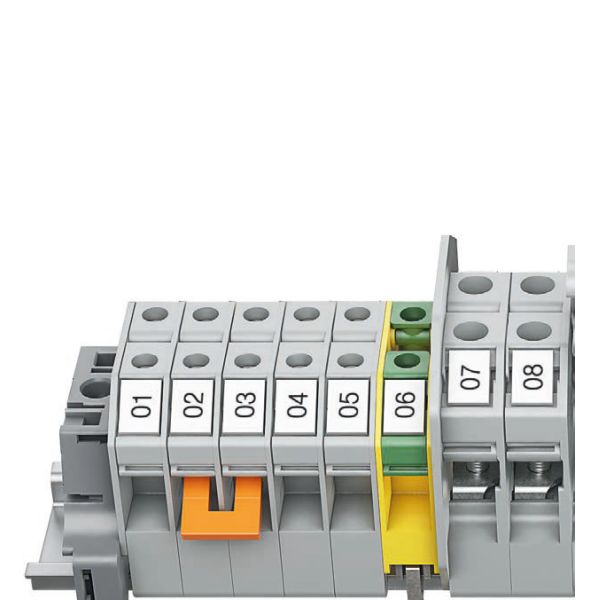

ENTRELEC RGW Ring Lug Terminal Blocks

The ENTRELEC RGW terminal blocks offer a fast and secured wiring solution for ring lugs. Featuring a unique stud technology with captive nuts in pivoting wings, these blocks ensure convenient and reliable connections. They are designed to speed up processes, enhance security and protection with a 100% captive wire connection, and improve installation efficiency by being more compact and featuring a universal mounting foot.

Product Attributes

  • Brand: ENTRELEC
  • Technology: Stud technology, Ring lug
  • Certifications: RoHS, IEC 61373, EN 45545-2 (HL3 R22), NF F 16-101 (I2F2), NF F 16-102 (Level 3), IEC 60068-2 series, UL94 V0
  • Color: Dark grey, Grey, Orange, Green-yellow, White

Technical Specifications

ModelDescriptionCross Section (mm)Cross Section (AWG)Rated Current (A)Rated Voltage (V)Part NumberPkg QtyWeight (g)
RGW2.5Feed-through2.51424 (IEC) / 15 (UL) / 20 (CSA)800 (IEC) / 600 (UL/CSA)1SNA510003R00004511.78
RGW2.5-PE-V0Ground2.514--1SNA511003R05004528.56
RGW2.5-TFeed-through with test sockets2.51424 (IEC) / 15 (UL) / 20 (CSA)800 (IEC) / 600 (UL/CSA)1SNA510103R00004511.58
RGW2.5-T-PE-V0Ground with test sockets2.514--1SNA511003R05004528.56

Accessories

ItemDescriptionTypePart NumberPkg QtyWeight (g)
1End stops10 mm1SNK900001R00005014.00
2End sections1.2 mm1SNA519003R0000251.89
3Lateral jumper bars2 poles, 24 A (IEC)1SNA519103R0200253.02
3Lateral jumper bars3 poles, 24 A (IEC)1SNA519103R0300204.69
3Lateral jumper bars4 poles, 24 A (IEC)1SNA519103R0400156.36
3Lateral jumper bars10 poles, 24 A (IEC)1SNA519103R1000516.39
4Circuit separators1.5 mm1SNA519200R0000254.59
5Terminal block markersBlank marker1SNA235511R06003608.03
-MarkerMG-CPM-011SNB041090R051019600.351
5Test plugsDIA 2 mm1SNA107239R0300201.00
