Specifications
Description :
PC Pin, Single Post Connectors RoHS
Mfr. Part # :
S07-46
Model Number :
S07-46
Description

Product Overview

Harwin Clip Connectors are designed for LED professionals, offering a low-profile solution to minimize shadow effects and eliminate hand soldering and wire cutting. Their thin design allows for placement alongside LEDs, preventing lighting gaps in modular designs and achieving optimal current levels. These connectors are supplied in tape and reel packaging for automated production, with design tips available for maximum current flow.

Product Attributes

  • Brand: Harwin

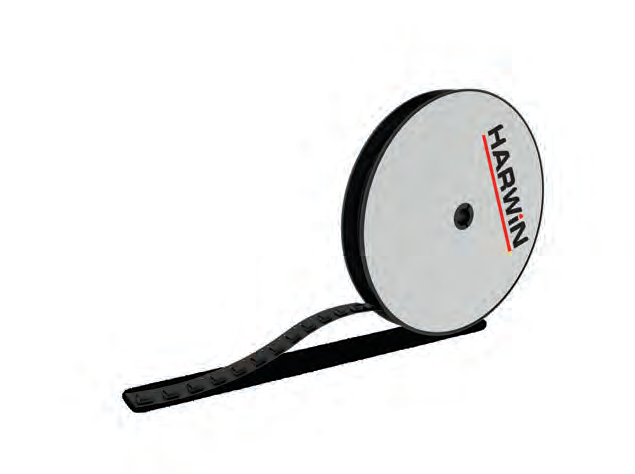

  • Packaging: Tape and Reel (10,000 per reel), Components per bag
  • Finish: Tin over Nickel
  • Material: Stainless Steel (Clips), Phosphor Bronze (Bars)
  • Origin: Not specified
  • Color: Not specified
  • Certifications: Not specified

Technical Specifications

Part/ModelTypeHeightCurrent RatingVoltage RatingInsertion Force (Max)Withdrawal Force (Min)DurabilityOperating TemperatureMaterialPackaging Format
S8071-46RVertical Clip0.84mm3-13 amps250V AC/DC25N (Initial)8N (Initial)10 CYCLES MAX-40C to +85CStainless SteelTape & Reel (10,000 on a 330mm reel)
S8081-46RHorizontal Clip1mm3-13 amps250V AC/DC12N (Initial)4N (Initial)10 CYCLES MAX-40C to +85CStainless SteelTape & Reel (10,000 on a 330mm reel)
S07-46Short Removable Bar (15mm)N/AN/AN/AN/AN/AN/AN/APhosphor BronzeLoose
S08-46Long Removable Bar (23mm)N/AN/AN/AN/AN/AN/AN/APhosphor BronzeLoose

2504101957_Harwin-S07-46_C17454821.pdf
