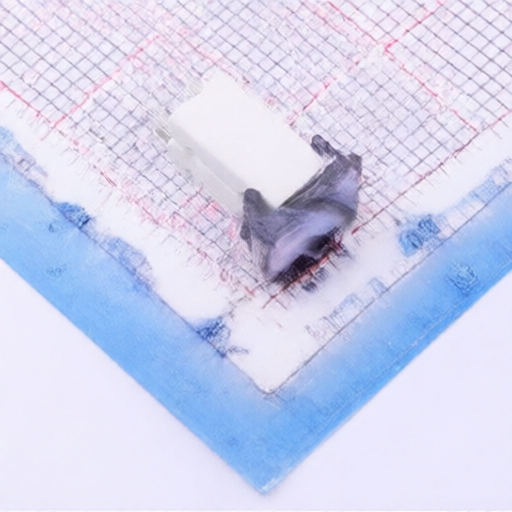

Solderable PCB terminal block with spring cage connection and 2 5 mm pitch Phoenix Contact 1814566
Solderable PCB terminal block with spring cage connection and 2 5 mm pitch Phoenix Contact 1814566
Specifications
Number of Positions or Pins :
1x2P
Current Rating :
6A
Number of Pins :
2P
Voltage Rating (Max) :
250V
Mounting Type :
直插
Color :
白色
Number of Rows :
1
Number of PINs Per Row :
2
Description :
1x2P 6A 2P 250V Through Hole White 1 2 P=2.5mm Solid State Lighting Connector Assemblies RoHS
Mfr. Part # :
1814566
Package :
P=2.5mm
Model Number :
1814566
Description

Product Overview

PCB connection terminal block for solderable through-hole mounting (THR). Features spring-cage connection for 90 conductor/PCB connection.

Product Attributes

  • Brand: Phoenix Contact
  • Origin: Germany
  • Material: PA (Insulating material)
  • Color: White
  • Certifications: GOST, UL Recognized, cUL Recognized, cULus Recognized

Technical Specifications

Nominal currentNominal voltagePitchNumber of positionsConnection methodMountingConductor cross section (solid)Conductor cross section (stranded)Stripping lengthPin dimensionsHole diameterRated surge voltage (III/3)Rated surge voltage (III/2)Rated surge voltage (II/2)Rated voltage (III/3)Rated voltage (III/2)Rated voltage (II/2)Inflammability class according to UL 94
PTSM 0,5/ 2-2,5-V THR WH R446 A250 V2.5 mm2Spring-cage connectionSMD/THT/THR0.14 mm - 0.5 mm0.2 mm - 0.5 mm6 mm0,3 x 0,8 mm1.2 mm2.5 kV2.5 kV2.5 kV160 V250 V400 VV0
GOST5 A150 V26-20 mm/AWG/kcmil
UL Recognized5 A150 V26-20 mm/AWG/kcmil
cUL Recognized5 A150 V26-20 mm/AWG/kcmil
cULus Recognized5 A150 V26-20 mm/AWG/kcmil

2410122011_Phoenix-Contact-1814566_C7435013.pdf
