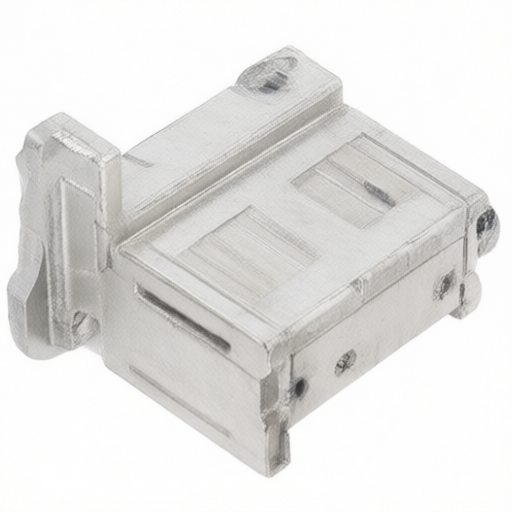

SC SC Duplex Ceramic Fiber Optic Adapter Metal Construction L-com FOA-005MA Zinc Alloy Nickel Plated
SC SC Duplex Ceramic Fiber Optic Adapter Metal Construction L-com FOA-005MA Zinc Alloy Nickel Plated
Specifications
Description :
Fiber Optic Connector Adapters RoHS
Mfr. Part # :
FOA-005MA
Model Number :
FOA-005MA
Description

Product Overview

This product is a metal SC-SC Duplex ceramic adapter. It is designed for fiber optic applications and features a zinc alloy body with a nickel-plated finish, a ceramic sleeve, and copper rivet. The recommended panel thickness is .06" [1.5]. The component will be individually packaged according to L-COM specification PS-0031. It is CE2011/65/EU (RoHS Directive) compliant.

Product Attributes

  • Brand/Manufacturer: L-COM, INC.
  • Configuration: SC-SC Duplex
  • Adapter Type: Metal
  • Sleeve Material: Ceramic
  • Body Material: Zinc Alloy
  • Rivet Material: Copper
  • Dust Cap Material: PVC
  • Spring Lever Material: PBT + 30% Glass Fiber
  • Mounting Clips Material: Stainless Steel
  • Body Finish: Nickel Plated
  • Rivet Finish: Tin Plated
  • Regulatory Compliance: CE2011/65/EU (RoHS DIRECTIVE)
  • Packaging: Individually packaged in accordance with L-COM specification PS-0031

Technical Specifications

Specification Value
Recommended Panel Thickness .06" [1.5]
Model Number FOA-005MA
Overall Dimensions (Reference) 1.311 x 1.08 inches [33.30 x 27.4 mm]
Panel Cutout Diameter (Recommended) 1.043 inches [26.49 mm]
Dust Cap Diameter .375 inches [9.53 mm]
Rivet Diameter .053 inches [1.35 mm]
Dimensional Tolerances (.X) .2 [5.08]
Dimensional Tolerances (.XX) .02 [.51]
Dimensional Tolerances (.XXX) .005 [.13]
