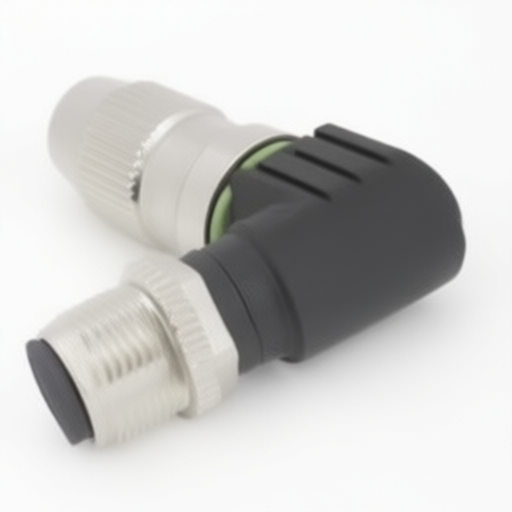

Durable M12 Male Right Angle 4 Pole Connector L-com M12FT4AM90 Zinc Die Cast Screw Material
Durable M12 Male Right Angle 4 Pole Connector L-com M12FT4AM90 Zinc Die Cast Screw Material
Specifications
Description :
Circular Connector Assemblies RoHS
Mfr. Part # :
M12FT4AM90
Model Number :
M12FT4AM90
Description

Product Overview

This M12, male, right-angle, 4-pole connector is designed for telecom/modular applications. It features a zinc pressure die casting screw material with a nickel surface and PVC/PP/TPE isolation materials. The connector is rated for a maximum of 32V AC/DC and 4A per contact, with IP67 protection when mated and tightened. It operates within a temperature range of -25 to +85C.

Product Attributes

  • Brand: L-COM
  • Connector Type: M12 Male, Right Angle, 4-Pole
  • Housing Material: Zinc Pressure Die Casting
  • Screw Material: Nickel Plated
  • Isolation Materials: PVC/PP/TPE
  • Color: White (No Imprint)
  • Regulatory Compliance: CE 2011/65/EU (RoHS Directive)
  • Protection Rating: IP67 (When Mated and Tightened)
  • Ships Unassembled

Technical Specifications

Specification Details
Model M12FT4AM90
Conductor Cross Section 23 AWG - 20 AWG [0.25mm-0.5mm]
Wire Diameter .047 [1.20mm] - .063 [1.60mm]
Cable Outside Diameter .157 [4.0mm] - .201 [5.1mm]
Temperature Range -25 to +85C
Nominal Voltage Max 32V AC/DC
Rated Current Max 4A per contact
Isolation Resistance Category III according to IEC 60664-1
Recommended Torque 0.6 N.M
Dimensions (Overall Cable Length Tolerance) 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
Other Dimensional Tolerances .X = .2 [5.08]
.XX = .02 [.51]
.XXX = .005 [.13]
Wiring Diagram PIN1: Brown
PIN2: White
PIN3: Blue
PIN4: Black

2310091334_L-com-M12FT4AM90_C6424860.pdf
