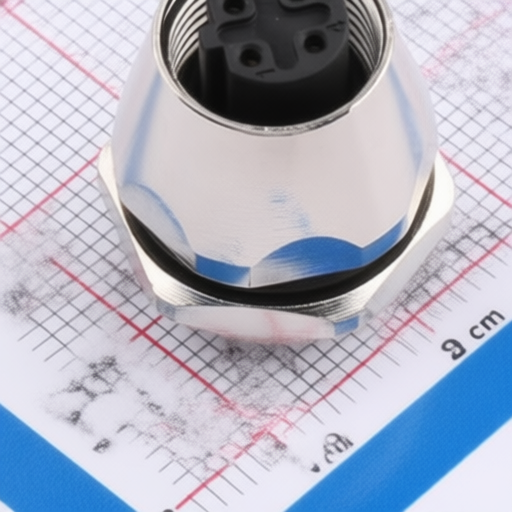

M12 panel mount connector CAZN M12-S4D-GWBP9-ZD with nitrile rubber black housing and PG9 lock plate
M12 panel mount connector CAZN M12-S4D-GWBP9-ZD with nitrile rubber black housing and PG9 lock plate
Specifications
Gender :
母
Mounting Type :
直头
Current Rating :
4A
Number of Pins :
4P
Level of Protection :
IP67
Operating Temperature :
-40℃~+80℃
Socket Specification :
M12
Voltage Rating :
250V
Description :
IP67 Circular Connector Assemblies RoHS
Mfr. Part # :
M12-S4D-GWBP9-ZD
Model Number :
M12-S4D-GWBP9-ZD
Description

Product Overview

This product is a M12 panel mount connector featuring a metal socket with a PG9 threaded connection. It is designed for solder wire connections and offers a bullet-shaped housing with a chamfered short body. The connector is suitable for various core configurations and is built with durable materials for industrial applications.

Product Attributes

  • Housing Material: Nitrile Rubber
  • Housing Color: Black
  • Connector Type: M12
  • Connection Type: Threaded
  • Mounting Type: Panel Mount
  • Locking Mechanism: PG9 Lock Plate
  • Shell Material: Copper
  • Nut Material: Brass
  • Nut Thread: PG9 (M12 socket nut)
  • Plating: Bright Nickel

Technical Specifications

Model Core Count Rated Current/Voltage Rated Impulse Voltage Insulation Resistance () Contact Resistance () Temperature Range Mating Cycles Pollution Degree Protection Class Hole Size (Nitrile Rubber)
M12-Sxx-GWBP9-ZD 2P 9*6*1.5
3P
4P
4P D
5P
17P
12P
8P
6P
5P
16*12*2

Connection Method: Threaded Connection

Wiring Method: Solder Wire

Drawing Version: A1

Drawing Date: 2024.8.24


2504101957_CAZN-M12-S4D-GWBP9-ZD_C42931280.pdf
