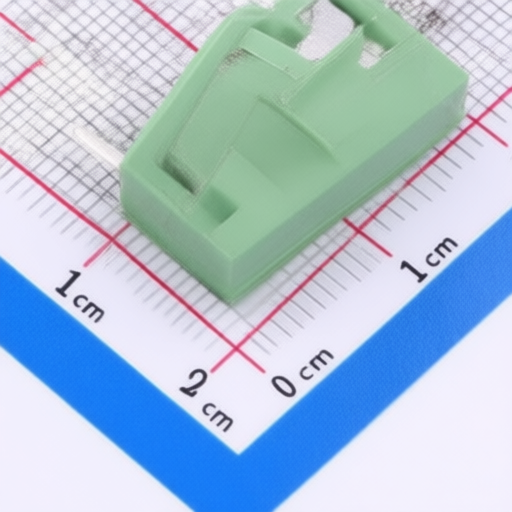

Single row screw terminal block chxunda XD127V-5.0-3P-V with 5 millimeter pitch and multiple color options
Single row screw terminal block chxunda XD127V-5.0-3P-V with 5 millimeter pitch and multiple color options
Specifications
Wire Gauge - mm2 :
2.5
Number of Positions or Pins :
1x3P
Number of Pins :
3P
Color :
绿色
Operating Temperature :
-40℃~+105℃
Current Rating :
12A
Screw Specification :
M2.5
Voltage Rating (Max) :
300V
Pitch :
5mm
Number of Rows :
1
Number of PINs Per Row :
3
Description :
2.5 1x3P Green -40℃~+105℃ 12A 300V 5mm 1 3 Through Hole,P=5mm Wire to Board RoHS
Mfr. Part # :
XD127V-5.0-3P-V
Package :
Through Hole,P=5mm
Model Number :
XD127V-5.0-3P-V
Description

Product Overview

The XD127V-5.00-NP-V is a single-row screw terminal block designed for electrical connections. It features a 5.00mm pitch and is available in various pin configurations from 2 to 24 pins. This terminal block is constructed with durable materials including PA66 for the plastic body and brass for the screw and solder pins, finished with plating for enhanced conductivity and corrosion resistance. It is rated for 300V and 12A, making it suitable for a wide range of industrial applications.

Product Attributes

  • Brand: Shenzhen Xunda Technology Co., Ltd
  • Product Name: XD127
  • Type: Screw Terminal Block
  • Pitch: 5.00mm
  • Material (Screw): Steel, Zinc Plated, Slotted
  • Material (Housing): PA66, UL94V-0
  • Material (Solder Pin): Brass, Nickel Plated
  • Material (Box): Brass, Nickel Plated
  • Color Options: Green, Blue, Orange, Red, Black, Gray
  • Screw Type: Slotted (Default), Phillips (Optional)
  • Origin: Shenzhen, China

Technical Specifications

Specification Value
Model Series XD127V
Pitch 5.00mm
Type Single Row, Screw Type
Pin Configuration 2-24 Pins (e.g., 2P, 3P)
Rated Voltage 300V
Rated Current 12A
Contact Resistance 20m (Max)
Insulation Resistance 500M / DC500V
Dielectric Strength AC1600V / 1Min
Wire Gauge 26-14AWG (2.5mm)
Temperature Range -40 to +105
Momentary Temperature +250 for 5 seconds
Torque 0.4Nm (3.54 Lbin)
Stripping Length 6-7mm
Screw Size M2.5

2405071008_chxunda-XD127V-5-0-3P-V_C22392654.pdf
