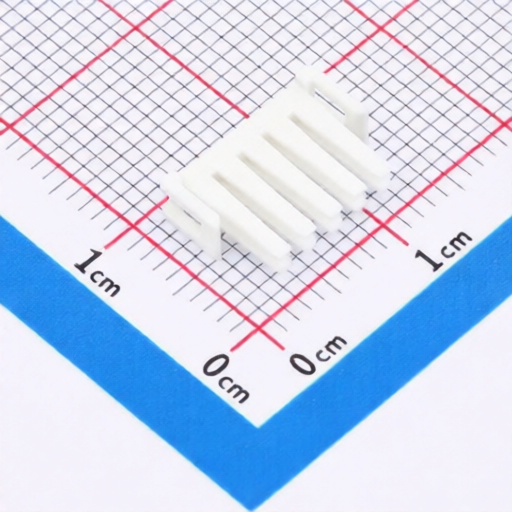

DLL PAD 10S wire to board connector featuring RoHS compliance and environmentally friendly materials
DLL PAD 10S wire to board connector featuring RoHS compliance and environmentally friendly materials
Specifications
Reference Series :
PAD
Number of PINs :
10
Type :
固定器
Description :
10 P=2mm Circular Connector Accessories RoHS
Mfr. Part # :
PAD-10S
Package :
P=2mm
Model Number :
PAD-10S
Description

Product Overview

The DELI () DL20034 Series is a 2.00mm pitch wire-to-board connector system designed for reliable electrical connections. This series includes wafers (DL20034-A, DL20034-AS, DL20034-AWD-S, DL20034-S) and housings (DL20034-Y), offering a versatile solution for various electronic applications.

Product Attributes

  • Brand: DELI ()
  • Origin: ZHEJIANG DELI CONNECTORS CO., LTD
  • Material (Wafer Pin): Brass / Tin-Plated
  • Material (Housing): Nylon UL94V-0(2). Green Material
  • Certifications: RoHS Compliant

Technical Specifications

Product NamePitchCircuitsRated VoltageRated CurrentContact ResistanceInsulation ResistanceWithstand VoltageAmbient TemperatureWire RangePin MaterialHousing MaterialMates With
DL20034-A(PAD-A)2.00 mm04-40250V AC, DC3A AC, DC20m max1000M min800V AC/minute-40+105AWG#28#22Brass / Tin-PlatedN/ADL20034-Y Series Housing
DL20034-AS(PAD-AS)2.00 mm04-40250V AC, DC3A AC, DC20m max1000M min800V AC/minute-40+105AWG#28#22Brass / Tin-PlatedN/ADL20034-Y Series Housing
DL20034-AWD-S(PAD-AWD-S)2.00 mm04-40250V AC, DC3A AC, DC20m max1000M min800V AC/minute-40+105AWG#28#22Brass / Tin-PlatedN/ADL20034-Y Series Housing
DL20034-Y(PAD-Y)2.00 mm04-40N/AN/AN/AN/AN/AN/AN/AN/ANylon UL94V-0(2)DL20034 series Wafer
DL20034-S(PAD-S)2.00 mm04-40250V AC, DC3A AC, DC20m max1000M min800V AC/minute-40+105AWG#28#22Phosphor BronzeNylon UL94V-0(2). Green MaterialDL20034-Y Series Housing
DL20034-T(PAD-T)2.00 mmN/AN/AN/AN/AN/AN/AN/AAWG#28#22Phosphor Bronze, Tin platedN/ADL20034-Y Series Housing
