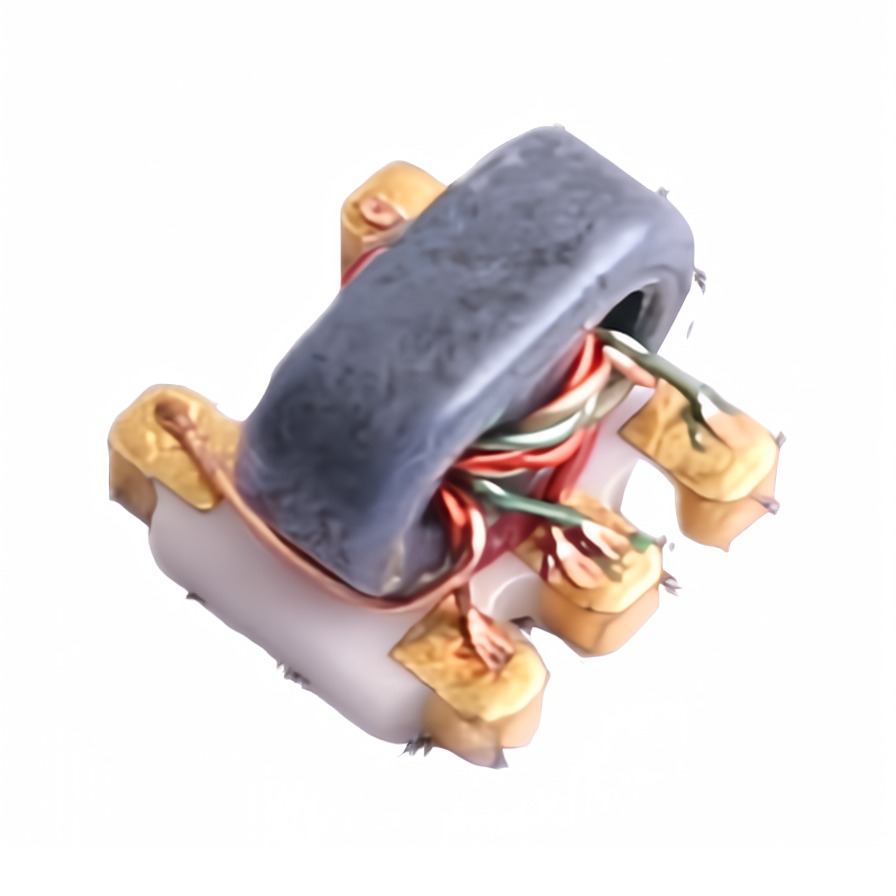

HenryTech H3-TC4-1W+
HenryTech H3-TC4-1W+
HenryTech H3-TC4-1W+
HenryTech H3-TC4-1W+
Specifications
Stock :
3000
Frequency Range :
2MHz~800MHz
Insertion Loss :
3dB
Phase Difference :
6.4°
Brand Name :
H3-TC4-1W+
Model Number :
H3-TC4-1W+
Packaging Details :
SMD
Description :
6.4° 2MHz~800MHz 3dB 1:4 SMD Balun RoHS
Impedance - Unbalanced/Balanced :
1:4
Delivery Time :
5-7工作日
Amplitude Balance (Max) :
1dB
MOQ :
1
Description

Product Overview

Function: RF Balun Transformer

Usage: Ideally suited for high volume cellular and wireless applications.

Advantages: Surface mount, Impedance ratio: 1:4, Available on tape and reel, RoHS compliant and Pb free, 260C reflow compatible, CT on Secondary.

Application Scenarios: Cellular and wireless applications.

Brand

HenryTech

Model

H3-TC4-1W+

Frequency Band

2-800MHz

Impedance

50

Impedance Ratio

1:4

Certifications

RoHS compliant and Pb free

Package Type

Surface mount, Tape and reel

Operating Temperature Range

-55 to 85

Frequency (MHz)Insertion Loss (dB) Min.Insertion Loss (dB) Typ.Insertion Loss (dB) Max.Amplitude Balance (dB) Min.Amplitude Balance (dB) Typ.Amplitude Balance (dB) Max.Phase Balance (Deg) Min.Phase Balance (Deg) Typ.Phase Balance (Deg) Max.Input Return Loss (dB) Min.Input Return Loss (dB) Typ.
10-1000.81.00.050.25
5-6001.22.01.36.4
2-8002.33.00.61.010
ParameterValueUnit
Input Power250mW MAX
DC Current30mA MAX
Pin No.Function
1Secondary Dot
2Secondary CT
3Secondary
4Primary Dot
5Primary
