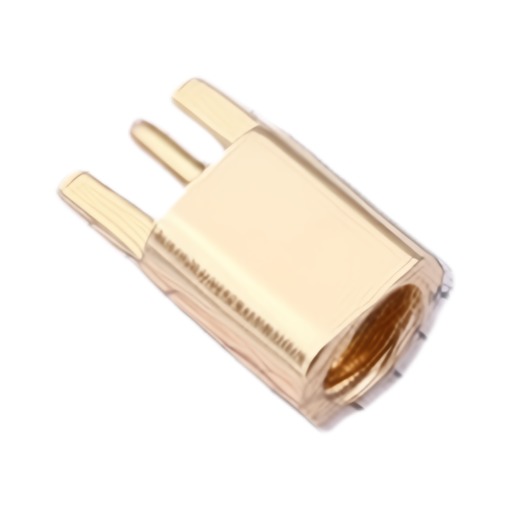

BAT WIRELESS BWMMCX-KEF-B
BAT WIRELESS BWMMCX-KEF-B
BAT WIRELESS BWMMCX-KEF-B
BAT WIRELESS BWMMCX-KEF-B
Specifications
Delivery Time :
1工作日
Model Number :
BWMMCX-KEF-B
Operating Temperature :
-65℃~+165℃
Number of Ports :
1
Interface :
Inner Bore
Connector Type :
Board Side
Stock :
1916
Brand Name :
BWMMCX-KEF-B
MOQ :
1
Description :
1 Inner Bore MMCX Board Side -65℃~+165℃ 6GHz 50Ω SMD Coaxial Connector (RF) Assemblies RoHS
Impedance :
50Ω
Packaging Details :
SMD
RF Series :
MMCX
Rated voltage :
170V
Frequency :
6GHz
Description

Product Overview

The BWMMCX-KEF is an RF antenna connector designed for various applications. It is manufactured by Shenzhen Bat Wireless Technology Co., Ltd. and is suitable for FPC, ceramic, metal, glue stick, suction cup, and cabinet antennas.

Brand

Bat Wireless

Manufacturer

Shenzhen Bat Wireless Technology Co., Ltd.

Product Name

MMCX Antenna Connector

Product Type

BWMMCX-KEF

Model

BWMMCX-KEF-B

Packaging

B: Tape and Reel Packaging

Shell Material

HPb59-1 (Brass), Gold Plated

Jack Material

Tin Phosphor Bronze, Gold Plated

Insulator Material

PTFE (Polytetrafluoroethylene)

Operating Temperature

-65~+165 (PE CABLE -40~+85)

ModelAntenna TypeImpedance ()VSWRFrequency Range (MHz)Max DC Voltage (V)Withstand Voltage (V)Contact Resistance ()Insulation Resistance (M)Insert Loss (dB)RF LeakageDurability (mating cycles)
BWMMCX-KEFMMCX50<1.15+0.02f(GHz)0~6000170Vmax1000Vrms (at sea level)Inner conductor 5M , Outer conductor 2.5M 10000.15dB (at 6GHz)-60dB/-90dB (soft cable/semi-rigid cable) @ 2-3GHz500
Test Equipment (VSWR & Impedance)Test Equipment (Gain & Efficiency)
Agilent 8753/E5071 Network AnalyzerETS three-dimensional anechoic chamber
