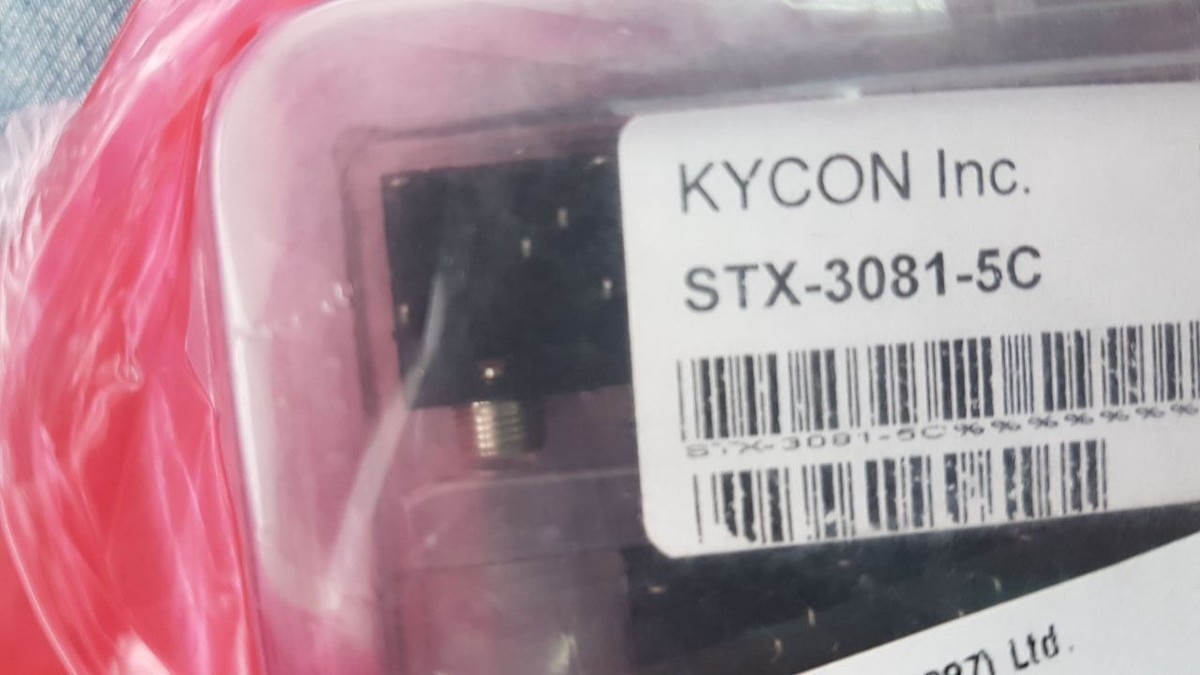

Kycon STX-3081-5C
Kycon STX-3081-5C
Kycon STX-3081-5C
Kycon STX-3081-5C
Kycon STX-3081-5C
Kycon STX-3081-5C
Kycon STX-3081-5C
Kycon STX-3081-5C
Specifications
Packaging Details :
-
Model Number :
STX-3081-5C
Brand Name :
STX-3081-5C
Description :
Audio Connectors RoHS
Stock :
400
Delivery Time :
10-18 working days
MOQ :
129
Description

Product Overview

Low Profile Stereo Jack with a threaded barrel and metal bushing. This 5-position jack is designed for various electronic applications, offering durability with a PBT thermoplastic housing and copper alloy terminals. It is RoHS compliant and rated for 3.0A at 24V DC.

Product Attributes

  • Brand: KYCON, Inc.
  • Origin: USA (Address: 305 Digital Drive, Morgan Hill, CA 95037)
  • Housing Material: PBT Thermoplastic UL 94V-0 Rated (Black Color)
  • Terminal Material: Copper Alloy with Matte Tin Plating
  • Barrel Material: Brass, Nickel Plated
  • Certifications: RoHS Compliant
  • Nut Included: Packaged Separately

Technical Specifications

FeatureSpecification
ModelSTX-3081-5C
Positions5
Rated VoltageDC 24 V
Rated Current3.0 A
Durability5000 Mating Cycles Min.
Operating Temperature-40C to +105C
Contact Resistance (Before Test)50 milliohms max.
Contact Resistance (After Durability Test)100 milliohms max.
Insulation ResistanceMore than 100 Megohms at 500V DC
Dielectric Strength500V AC RMS for 1 minute
Insertion Force0.3kg - 3.0kg
Extraction Force0.3kg - 3.0kg
Housing DimensionsM6.0x0.5 8.0 5.5 3.0 6.0 3.600.05 6.0 2 17.6 16.6 5.5 3.5 3.0
PCB Layout Dimensions (Bottom View)5-0.80x1.80, 5-1.3
TolerancesX.X 0.3, X.XX 0.15 (Unless Stated Otherwise)
