BAT WIRELESS BWIPEX-002E
BAT WIRELESS BWIPEX-002E
BAT WIRELESS BWIPEX-002E
BAT WIRELESS BWIPEX-002E
Specifications
Operating Temperature :
-40℃~+85℃
Impedance :
50Ω
Description :
Connector IPEX 50Ω Surface Mount
Interface :
Male Pin
Delivery Time :
7-10 working days
Frequency :
6GHz
MOQ :
5000
Model Number :
BWIPEX-002E
Packaging Details :
SMD
Interface Diameter :
2mm
Number of Ports :
1
RF Series :
IPEX
Brand Name :
BWIPEX-002E
Stock :
50000
Connector Type :
Board Side
Description

Product Overview

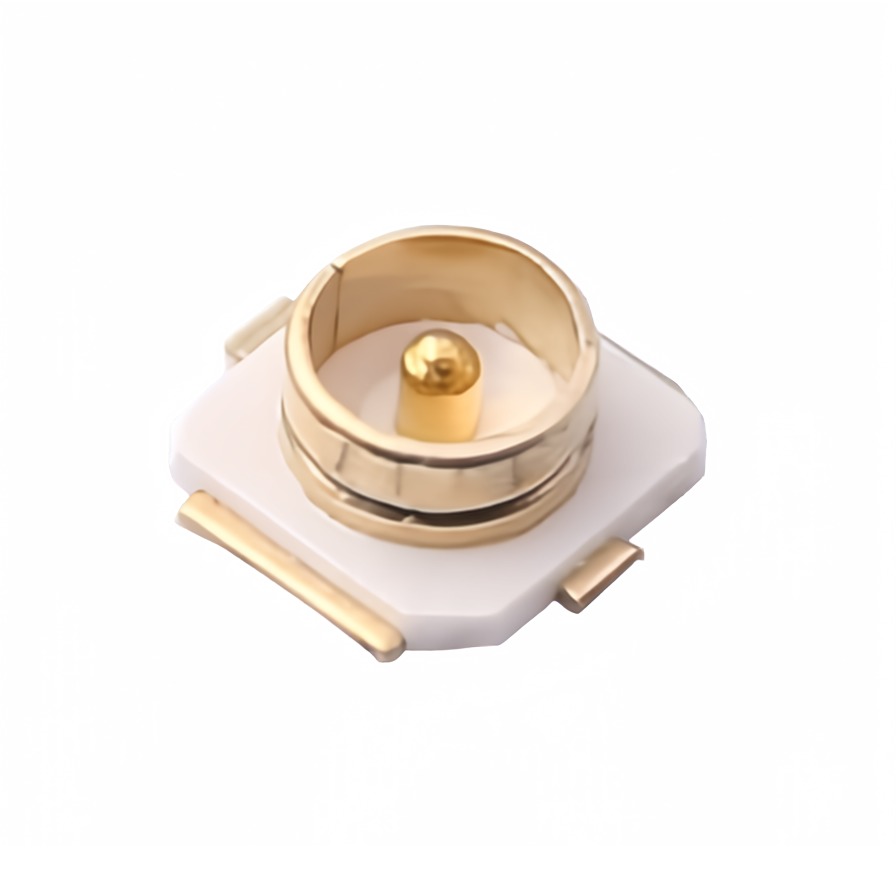

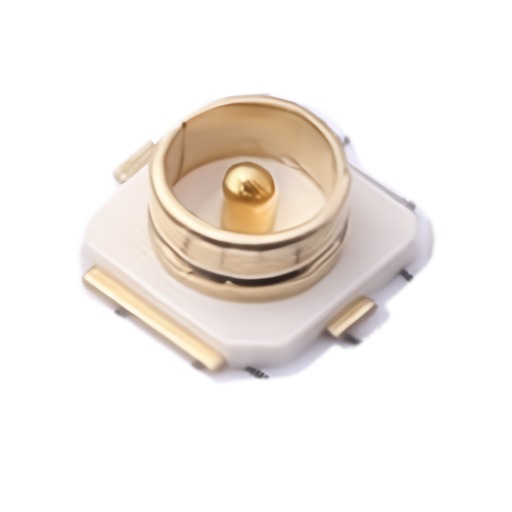

The Bat Wireless BWIPEX-002E is an ultra-small, 4-pin IPEX-1 board-end RF coaxial connector designed for high-density PCB layouts. It offers a wide frequency range of 0-6000MHz, making it suitable for mainstream wireless communication bands including Wi-Fi, Bluetooth, GPS, and 4G/5G antennas. This connector features a low-loss design, optimized process, and coaxial structure to ensure efficient signal transmission. It is typically soldered onto a PCB and used with a female connector. Bat Wireless also provides customized services with a responsive R&D team to meet specific device optimization needs.

Product Attributes

  • Brand: BAT WIRELESS
  • Model Number: BWIPEX-002E
  • Connector Type: IPEX-1 Board-End Connector
  • Interface Type: Male terminal with central pin
  • Certifications: RoHS & REACH Complaint
  • Material: Gold-Plated Brass
  • Color: Gold
  • Mounting Way: Surface Mount (SM)
  • Origin: Shenzhen Bat Wireless Technology Co,.Ltd

Technical Specifications

Parameter Typ. Unit Notes
Antenna Type IPEX Antenna Connector - -
Frequency Range 0-6000 MHz 0-6 GHz
Input Impedance 50 -
Contact Resistance - m -
Insulation Resistance - M -
Insert Loss 0.1 dB(6GHz) -
RF Leakage - - -
Durability - Times -
DC Voltage 50 V -
Dimensions (L*W*H) 2.6 x 2.6 x 1.2 mm -
Connector Type Jack - -
Cable Type - - -
Cable Length - mm -
Weight 9 g -
Operating Temperature -45~ +85 -
Storage Temperature -45~ +85 -
