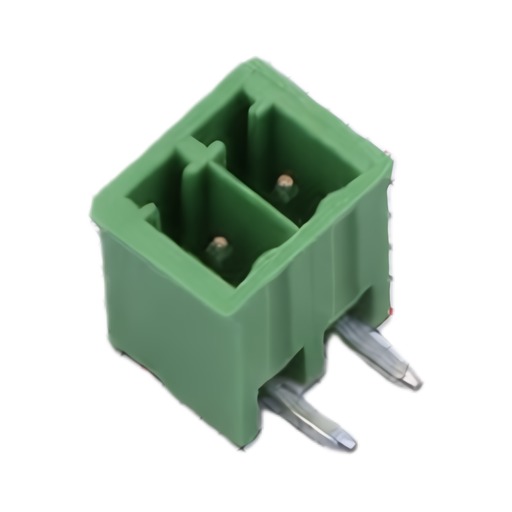

TE Connectivity 284512-2
TE Connectivity 284512-2
TE Connectivity 284512-2
TE Connectivity 284512-2
Specifications
Brand Name :
284512-2
Current Rating :
11A
Color :
Green
Mounting Type :
Straight Pin
Number of PINs Per Row :
2
MOQ :
70
Packaging Details :
Through Hole,Right Angle,P=3.5mm
Delivery Time :
7-13工作日
Description :
2 Position 3.5mm Pitch Straight Pin
Number of Pins :
2P
Voltage Rating (Max) :
300V
Number of Rows :
1
Stock :
3268
Connector Type :
Board Side/Socket - Closed
Pitch :
3.5mm
Model Number :
284512-2
Operating Temperature :
-40℃~+105℃
Description

Product Overview

Product Type: TERMINAL BLOCK, HEADER ASSEMBLY

Configuration: 90 DEGREE, CLOSED ENDS

Pitch: 3.5mm

Application: Recommended for PC Board Layout. Suitable for 1.6-2.4 mm. PC Board Thickness.

Mating Part: Part to be mated with 2-284506-9 or 3-284506-0.

Features: Polarization Key Slot.

Product Attributes

Brand

TE Connectivity

Material (Housing)

PA 6.6, UL 94-V0, Color Green

Material (Terminal)

Phosphor Bronze

Certifications

UL 94-V0

Drawing Number

284512

Technical Specifications

Part NumberNo. of PositionsDimension A (mm)Dimension B (mm)Terminal Plating
284512-228.09.3TIN
284512-3311.512.8TIN
284512-4415.016.3TIN
284512-5518.519.8TIN
284512-6622.023.3TIN
284512-7725.526.8TIN
284512-8829.030.3TIN
284512-9932.533.8TIN
1-284512-01036.037.3TIN
1-284512-11139.540.8TIN
1-284512-21243.044.3TIN
1-284512-31346.547.8TIN
1-284512-41450.051.3TIN
1-284512-51553.554.8TIN
1-284512-61657.058.3TIN
1-284512-71760.561.8TIN
1-284512-81864.065.3TIN
1-284512-91967.568.8TIN
2-284512-02071.072.3TIN
2-284512-12174.575.8TIN
2-284512-22278.079.3TIN
2-284512-32381.582.8TIN
2-284512-42485.086.3TIN
2-284512-52588.589.8TIN

Material and Finish Variations

Part NumberNo. of PositionsDimension A (mm)Dimension B (mm)Terminal Plating
3-284512-3311.512.80.2 MICRON GOLD
3-284512-4415.016.30.2 MICRON GOLD
3-284512-51243.044.30.2 MICRON GOLD
3-284512-6725.526.8GOLD FLASH
3-284512-8311.512.8TIN
3-284512-9311.512.8TIN
