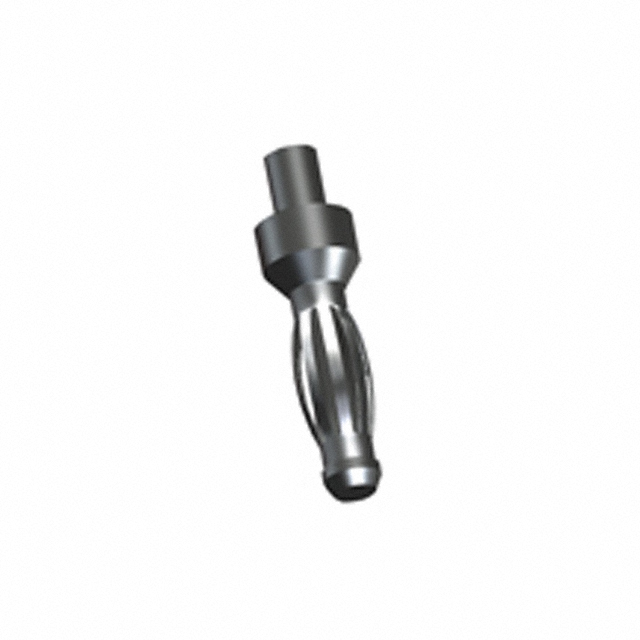

Keystone 552-4
Keystone 552-4
Keystone 552-4
Keystone 552-4
Keystone 552-4
Keystone 552-4
Specifications
Brand Name :
552-4
Delivery Time :
12-40周
Description :
Jacks, Plugs RoHS
Packaging Details :
-
Stock :
100000
Model Number :
552-4
MOQ :
100
Description

Product Overview

This document details a range of BANANA PLUGS, specifically the 110 STANDARD SOLDERLESS series. These connectors are designed for reliable electrical connections and are available in various configurations including solderless, solderless with set screw, and solderless connection types. They are constructed from durable materials such as Brass, Nickel Plate, and Nylon, with springs made from Nickel Silver, Phosphor Bronze, or Beryllium Copper, ensuring longevity and performance. The product line includes options for different wire sizes and connection methods, catering to diverse application needs.

Product Attributes

  • Brand: KEYELCO
  • Origin: USA (implied by address)
  • Certifications: RoHS COMPLIANT, ISO 9001 CERTIFIED
  • Color Options: RED, BLACK

Technical Specifications

Cat. No.ColorConnection TypeSpring MaterialBody MaterialHandle MaterialWire Acceptance (DIA.)Screw SizeDimensions (in [mm])Current Rating
6078REDSolderlessNickel SilverBrass, Nickel PlateNylon.156 [4.0]N/A.875 [22.2] (Overall), .375 [9.5] (Plug)N/A
6079BLACKSolderlessNickel SilverBrass, Nickel PlateNylon.156 [4.0]N/A.875 [22.2] (Overall), .375 [9.5] (Plug)N/A
6084REDSolderless with Set ScrewNickel SilverBrass, Nickel PlateNylon.160 [4.1]2-56 x .187 [4.8] L..531 [13.5] (Overall), .175 [4.5] (Plug)N/A
6085BLACKSolderless with Set ScrewNickel SilverBrass, Nickel PlateNylon.160 [4.1]2-56 x .187 [4.8] L..531 [13.5] (Overall), .175 [4.5] (Plug)N/A
6080REDSolderPhosphor BronzeBrass, Nickel PlateN/A.093 [2.36] DIA. x .328 [8.33] DEEPN/A.608 [15.5] (Overall), .228 [5.8] (Plug)N/A
6081BLACKSolderPhosphor BronzeBrass, Nickel PlateN/A.093 [2.36] DIA. x .328 [8.33] DEEPN/A.608 [15.5] (Overall), .228 [5.8] (Plug)N/A
6082REDSolderlessPhosphor BronzeBrass, Nickel PlateN/ACRIMP HOLEN/A.562 [14.3] (Overall), .175 [4.5] (Plug)N/A
6083BLACKSolderlessPhosphor BronzeBrass, Nickel PlateN/ACRIMP HOLEN/A.562 [14.3] (Overall), .175 [4.5] (Plug)N/A
652N/AN/ABeryllium CopperBrass, Nickel PlateN/AN/A8-32 THREAD.312 [7.9] (Overall), .175 [4.5] (Plug)N/A
653N/AN/ABeryllium CopperBrass, Nickel PlateN/AN/A6-32 THREADL: 1.062 (27.0), A: .500(12.7), H: .437(11.1)N/A
654N/AN/APhosphor BronzeBrass, Nickel PlateN/AN/A6-32 THREADL: .937 (24.7), A: .188(4.8), H: .550(14.0)N/A
655N/AN/APhosphor BronzeBrass, Nickel PlateN/AN/A6-32 THREADL: 1.250 (31.8), A: .500(12.7), H: .550(14.0)N/A
657N/AN/ABeryllium CopperBrass, Nickel PlateN/AN/A6-32 THREAD.375 [9.5] (Overall), .175 [4.45] (Plug)N/A
6074-1N/AExternal ThreadN/ABrass, Nickel PlateN/AN/A6-32D: .175 (4.5), A: .531 (13.5), H: 1.125 (28.6), L: .375 (9.5)N/A
6074-2N/AExternal ThreadN/ABrass, Nickel PlateN/AN/A6-32D: .175 (4.5), A: .531 (13.5), H: 1.500 (38.1), L: .750 (19.1)N/A
6075N/AExternal ThreadN/ABrass, Nickel PlateN/AN/A1/4-28D: .300 (7.5), A: .750 (19.1), H: 1.750 (44.5), L: .625 (15.9)N/A
552-3N/AN/A4 leafBrass, Nickel PlateN/AN/AN/AL: .187 (4.7), A: .437 (11.1)N/A
552-4N/AN/A4 leafBrass, Nickel PlateN/AN/AN/AL: .218 (5.5), A: .437 (11.1)N/A
658N/AN/AbarrelBrass, Nickel PlateN/AN/AN/AL: .187 (4.7), A: .550 (14.0)N/A
6072N/AN/A4 leafBrass, Nickel PlateN/AN/A6-32D: .175 (4.4), A: .531 (13.5), H: .960 (24.4)N/A
6073N/AN/A4 leafBrass, Nickel PlateN/AN/A10-32D: .300 (7..6), A: .750 (19.1), H: 1.156 (29.4)N/A
659*N/AN/AbarrelBrass, Nickel PlateN/AN/A6-32D: .175 (4.4), A: .550 (14.0), H: .960 (24.4)N/A
Standard PlugN/AN/AN/AN/AN/A.175N/AN/A15 Amps
Large PlugN/AN/AN/AN/AN/A.300N/AN/A40 Amps
