PASTERNACK PE4062
PASTERNACK PE4062
PASTERNACK PE4062
PASTERNACK PE4062
Specifications
Description :
Coaxial Connector (RF) Assemblies RoHS
Brand Name :
PE4062
Model Number :
PE4062
Packaging Details :
-
Delivery Time :
10-15工作日
MOQ :
1
Stock :
6
Description

Product Overview

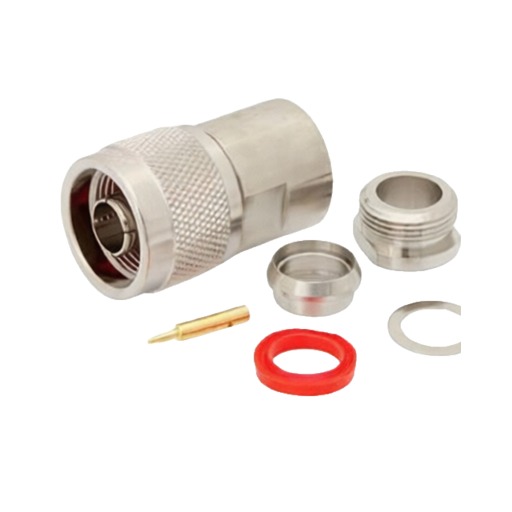

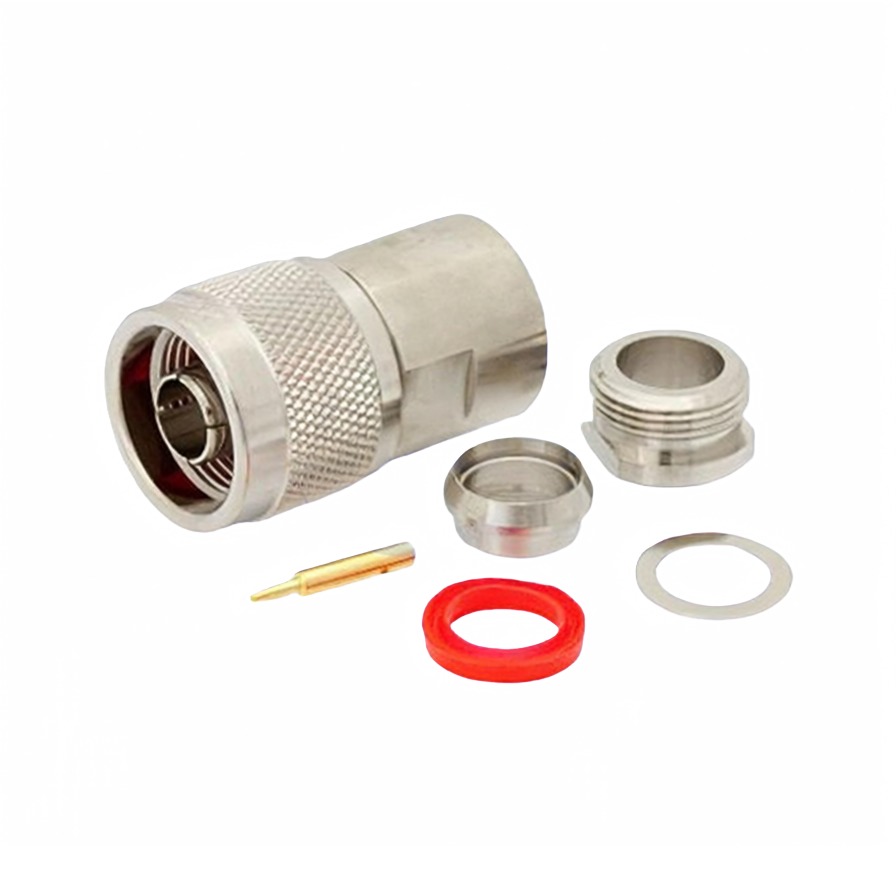

Pasternack's PE4062 is a Type N male connector featuring a clamp/solder attachment designed for a wide range of coaxial cables including RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, and RG215. This connector operates up to a maximum frequency of 11 GHz with a good VSWR of 1.5:1, making it suitable for general-purpose testing and custom cable assembly applications. It boasts a gold-plated brass contact for reliable performance.

Product Attributes

  • Brand: Pasternack
  • Connector Type: N Male
  • Attachment Method: Clamp/Solder
  • Contact Plating: Gold (30 in minimum)
  • Body Material: Brass (Nickel plated 100 in minimum)
  • Coupling Nut Material: Brass (Nickel plated 100 in minimum)
  • Insulation Material: PTFE
  • Certifications: See product page for current document

Technical Specifications

SpecificationValueUnits
Max. Operating Frequency11GHz
VSWR (Typical)1.5:1
VSWR (Max, 0-6 GHz)1.3:1
VSWR (Max, 6-11 GHz)1.5:1
Operating Voltage1,000Vrms
Length1.51in [38.35 mm]
Width/Dia.0.787in [19.99 mm]
Weight0.116lbs [52.62 g]
Operating Temperature Range-65 to +165deg C
Cable CompatibilityRG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, RG215
