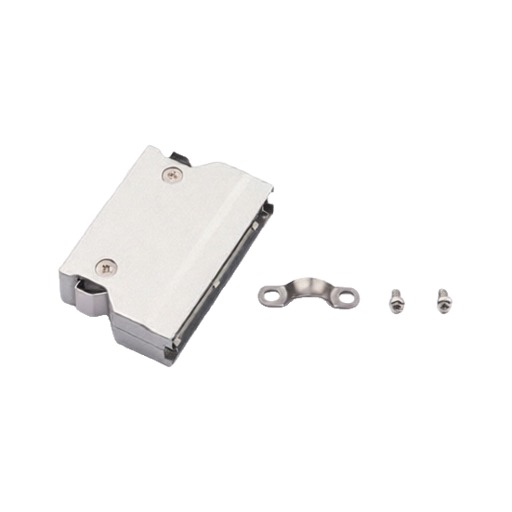

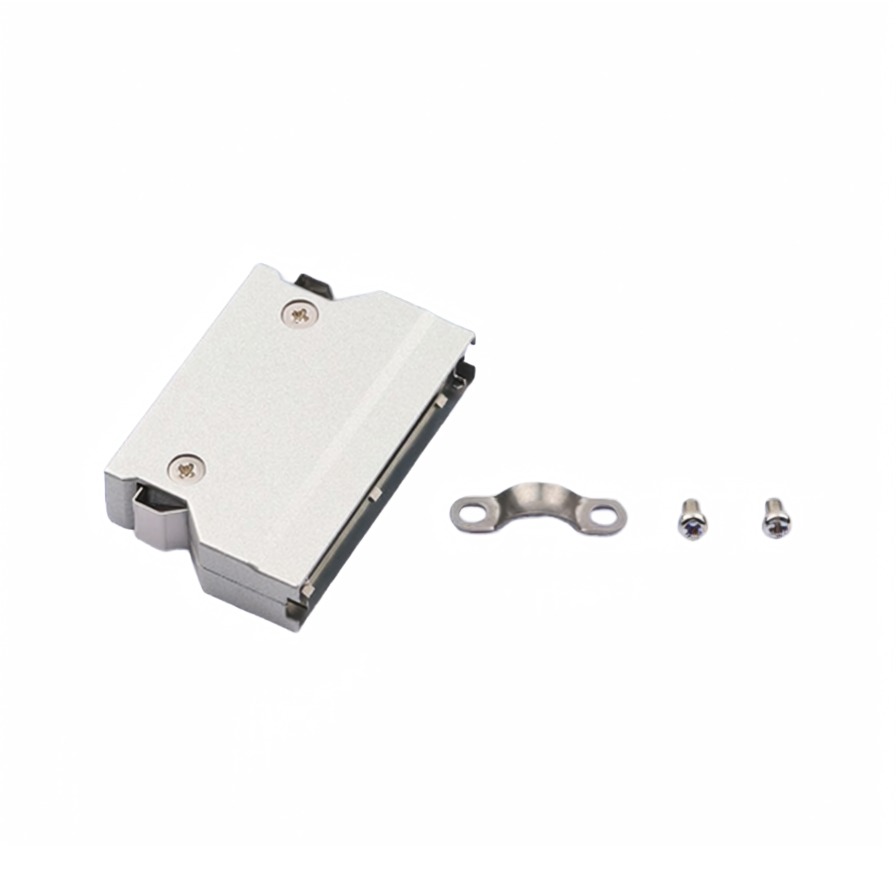

HRS DX-50-CV
HRS DX-50-CV
HRS DX-50-CV
HRS DX-50-CV
Specifications
Model Number :
DX-50-CV
Stock :
2500
MOQ :
250
Packaging Details :
-
Description :
D-Sub, D-Shaped Connector Backshells, Hoods RoHS
Brand Name :
DX-50-CV
Delivery Time :
14-26周
Description

DX Series/Connector for Half-Pitch Interface

The DX Series offers in-line and plug-in connectors with Insulation Displacement Connection (IDC) technology for various cable configurations, including discrete, ribbon, and Hi-Flex cables. These connectors are designed for efficient and reliable wire termination in half-pitch interface applications.

Brand

HIROSE ELECTRIC CO., LTD.

Interface

Half-Pitch

Connection Type

Insulation Displacement Connection (IDC)

Part No. HRS No. No. of Pos. Dimension A (mm) Dimension B (mm) Dimension C (mm)
DX10-20S(50) CL0230-0001-1-50 20 11.43 27.4
DX10A-20S(50) CL0230-0047-2-50 20 11.43 27.4
DX10-28S(50) CL0230-0002-4-50 28 16.51 32.48
DX10A-28S(50) CL0230-0048-5-50 28 16.51 32.48
DX10-36S(50) CL0230-0003-7-50 36 21.59 37.56
DX10A-36S(50) CL0230-0049-8-50 36 21.59 37.56
DX10-50S(50) CL0230-0004-0-50 50 30.48 46.45
DX10A-50S(50) CL0230-0050-7-50 50 30.48 46.45
DX10-68S(50) CL0230-0005-2-50 68 41.91 57.88
DX10A-68S(50) CL0230-0051-0-50 68 41.91 57.88
DX10-80S(50) CL0230-0006-5-50 80 49.53 65.5
DX10A-80S(50) CL0230-0052-2-50 80 49.53 65.5
DX10A-100S(50) CL0230-0043-1-50 100 62.23 78.2
DX20-36S(50) CL0230-0081-0-50 36 21.59 37.56
DX20-50S(50) CL0230-0068-2-50 50 30.48 46.45 2.8
DX20-80S(50) CL0230-0083-6-50 80 49.53 65.5
DX20A-36S(50) CL0230-0156-8-50 36 21.59 37.56
DX20A-50S(50) CL0230-0272-9-50 50 30.48 46.45
DX20A-68S(50) CL0230-0144-9-50 68 41.91 57.88 37
DX20A-80S(50) CL0230-0158-3-50 80 49.53 65.5
DX20A-100S(50) CL0230-0084-9-50 100 62.23 78.2
