HenryTech HLY-2.92-KFD0.30-7
HenryTech HLY-2.92-KFD0.30-7
HenryTech HLY-2.92-KFD0.30-7
HenryTech HLY-2.92-KFD0.30-7
Specifications
Impedance :
50Ω
Number of Ports :
1
Packaging Details :
-
Description :
1 Inner Bore -55℃~+165℃ 40GHz 50Ω Coaxial Connector (RF) Assemblies RoHS
Delivery Time :
5-7工作日
Interface :
Inner Bore
Operating Temperature :
-55℃~+165℃
Stock :
1000
Brand Name :
HLY-2.92-KFD0.30-7
Model Number :
HLY-2.92-KFD0.30-7
MOQ :
1
Frequency :
40GHz
Description

Product Overview

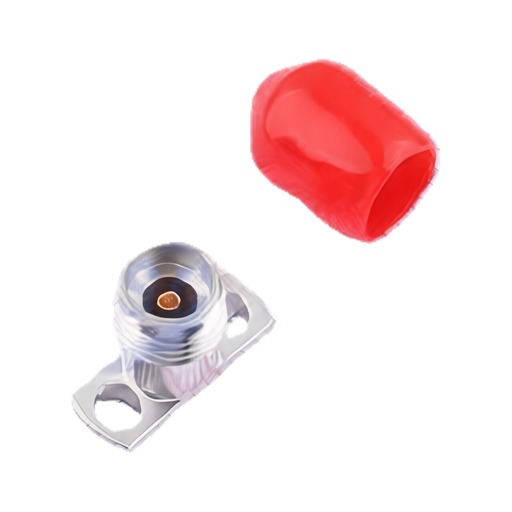

The 2.92mm (40GHz) connector series offers high-performance solutions for demanding RF applications. These connectors are designed for detachability and replaceability, ensuring ease of maintenance and flexibility in system design. They are compatible with microstrip or stripline configurations and are available in male/female versions. Mounting options include flange-mount, threaded, or waveguide probe interfaces.

The back-to-back test measures the combined response of two connectors. Testing up to 40 GHz exposes any internal impedance mismatches within the connectors. The individual connector's VSWR can be derived by taking the square root of the measured peak VSWR.

Brand Chengdu Henglitai Technology Co., Ltd
Origin China
Connector Type 2.92mm (40GHz)
Compatibility Microstrip or Stripline
Versions Male/Female
Mounting Options Flange-Mount, Threaded, Waveguide Probe Interface
Durability Mating Cycles: 500
Temperature Range -55C to +165C
Part Number Jack Inner Diameter (mm) Jack Inner Diameter (in)
HLY-2.92-KFD0.23-4 0.23 0.009
HLY-2.92-KFD0.30-4 0.30 0.012
HLY-2.92-KFD0.38-4 0.38 0.015
HLY-2.92-KFD0.46-4 0.46 0.018
HLY-2.92-KFD0.51-4 0.51 0.020
HLY-2.92-KFD0.23-5 0.23 0.009
HLY-2.92-KFD0.30-5 0.30 0.012
HLY-2.92-KFD0.38-5 0.38 0.015
HLY-2.92-KFD0.46-5 0.46 0.018
HLY-2.92-KFD0.51-5 0.51 0.020
HLY-2.92-KFD0.23-6 0.23 0.009
HLY-2.92-KFD0.30-6 0.30 0.012
HLY-2.92-KFD0.38-6 0.38 0.015
HLY-2.92-KFD0.46-6 0.46 0.018
HLY-2.92-KFD0.51-6 0.51 0.020
HLY-2.92-KFD0.23-7 0.23 0.009
HLY-2.92-KFD0.30-7 0.30 0.012
HLY-2.92-KFD0.38-7 0.38 0.015
HLY-2.92-KFD0.46-7 0.46 0.018
HLY-2.92-KFD0.51-7 0.51 0.020
Specification Value
Impedance 50
VSWR (max) <1.15:1
Contact Resistance (Outer Contact) <3.0m
Contact Resistance (Center Contact) <2.0m
Insulation Resistance (i) 5000M
Insulation Resistance (ii) 1000M
Conductor Support 50N
Material & Finish Component
Stainless Steel (SU303) / Passivated Outer Contact
Berylliun-Copper (C17300) / Gold Plated Center Contact
PTFE / AIR Insulators
ULTEM 1000 Center Conductor Support
