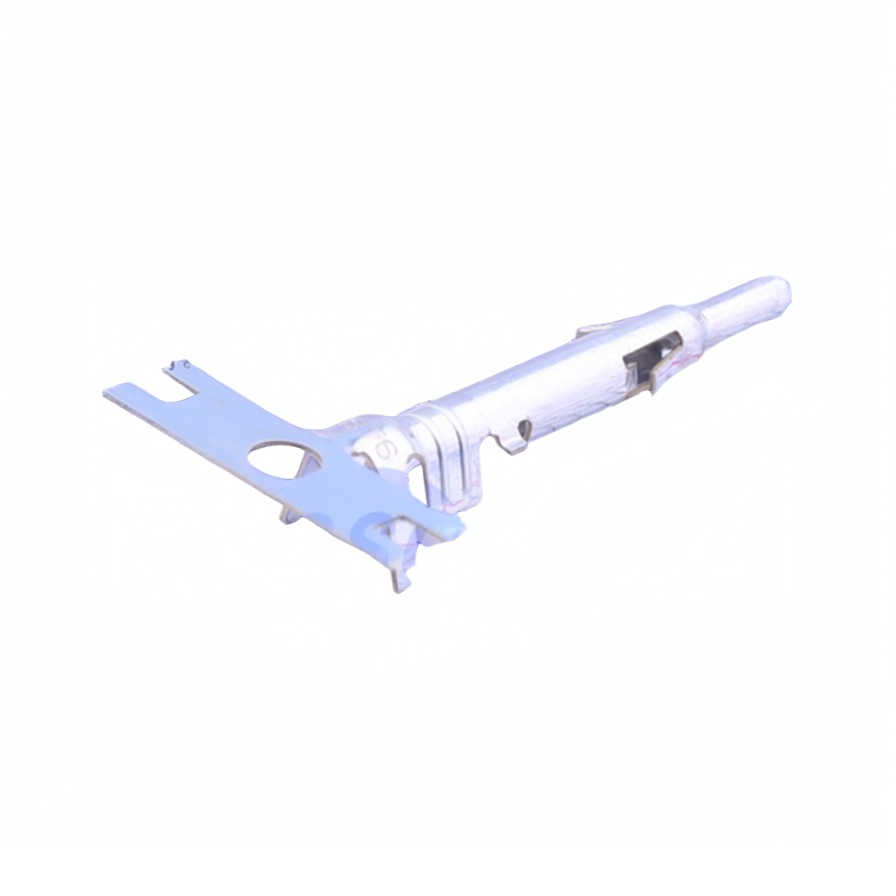

JST SLM-41T-1.3E
JST SLM-41T-1.3E
JST SLM-41T-1.3E
JST SLM-41T-1.3E
Specifications
Brand Name :
SLM-41T-1.3E
Model Number :
SLM-41T-1.3E
Wire Gauge - mm2 :
0.5~1.25
Delivery Time :
5-7工作日
Contact Plating :
Tin
Description :
0.5~1.25 Rectangular Connector Contacts RoHS
Stock :
16000
Rated Voltage (Max) :
300V
Contact Material :
Phosphor Bronze
MOQ :
4000
Packaging Details :
-
Description

E I-CONNECTOR

4.5mm pitch / Disconnectable Crimp style Wire-to-wire connectors. The contacts for the compact EL connector can be easily inserted into the connector housings. The plug housing and the receptacle housing can be smoothly mated even if they are mechanically distorted.

Key Features:

  • Easy insertion and secure installation of contacts.
  • A smooth connection even when pried during mating.
  • Durable arm lock mechanism.
  • Two contact styles.
  • Interchangeability with ML connector.

Application: Wire-to-wire connections.

Brand

JST

Certifications

UL Recognized E60389, CSA Certified LR20812, VDE Certified A R75052

Material

PA 6, UL94V-0, white (Housing); Phosphor bronze, tin-plated (Contacts)

Compliance

RoHS compliant

Specification Value
Current rating 10A AC, DC max.
Voltage rating 300V AC, DC max.
Temperature range -25C to +90C (including temperature rise in applying electrical current)
Contact resistance (Initial) 7m max.
Contact resistance (After environmental testing) 10m max.
Insulation resistance 1,000M min.
Withstanding voltage 1,500V AC/minute
Applicable wire gauge AWG #26 to #16 (0.13 to 1.25mm)
Applicable panel thickness 0.8 to 2.0mm
Circuits Wire size (AWG) Current rating (A)
2 #18, #20, #22, #24, #26 13, 9, 5, 3, 2
4 #16, #18, #20, #22, #24, #26 10, 6, 4, 3, 2, 2
6 #16, #18, #20, #22, #24, #26 8, 5, 4, 3, 3, 3
9 #18, #20, #22, #24, #26 6, 4, 3, 3, 2, 2
12 #18, #20, #22, #24, #26 8, 8, 8, 2, 2
Circuits Model No. (Receptacle) Dimensions A (mm) Model No. (Plug) Dimensions A (mm)
2~4 (Single-line) ELR-02V, ELR-03V, ELR-04V 10.4, 15.0, 19.7, 24.2 ELP-02V, ELP-03V, ELP-04V 10.4, 15.0, 19.7, 24.2
4 (Double-line) ELR-04NV 15.6 ELP-04NV 15.6
6 ELR-06V 19.7 ELP-06V 19.7
9 ELR-09V 19.7 ELP-09V 19.7
12 ELR-12V 24.2 ELP-12V 24.2
15 ELR-15V 28.7 ELP-15V 28.7
Model No. (Receptacle) Panel hole dimensions (mm) Applicable panel thickness (mm) Model No. (Plug) Panel hole dimensions (mm) Applicable panel thickness (mm)
ELR-02V A: 15.0, B: 6.0, C: 6.85, D: 5.2 0.8 to 2.0 ELP-02V A: 15.0, B: 6.0, C: 6.85, D: 5.2 0.8 to 2.0
ELR-03V A: 19.7, B: 6.0, C: 6.85, D: 5.2 0.8 to 2.0 ELP-03V A: 19.7, B: 6.0, C: 6.85, D: 5.2 0.8 to 2.0
ELR-04V A: 24.2, B: 6.0, C: 6.85, D: 5.2 0.8 to 2.0 ELP-04V A: 24.2, B: 6.0, C: 6.85, D: 5.2 0.8 to 2.0
ELR-04NV A: 15.6, B: 10.6, C: 1.6, D: 5.2 0.8 to 2.0 ELP-04NV A: 15.6, B: 10.6, C: 1.6, D: 5.2 0.8 to 2.0
ELR-06V A: 19.7, B: 10.2, C: 11.4, D: 5.2 0.8 to 2.0 ELP-06V A: 19.7, B: 10.2, C: 11.4, D: 5.2 0.8 to 2.0
ELR-09V A: 19.7, B: 14.8, C: 15.7, D: 5.2 0.8 to 2.0 ELP-09V A: 19.7, B: 14.8, C: 15.7, D: 5.2 0.8 to 2.0
ELR-12V A: 24.2, B: 14.8, C: 15.7, D: 5.2 0.8 to 2.0 ELP-12V A: 24.2, B: 14.8, C: 15.7, D: 5.2 0.8 to 2.0
ELR-15V A: 28.7, B: 14.8, C: 15.7, D: 5.2 0.8 to 2.0 ELP-15V A: 28.7, B: 14.8, C: 15.7, D: 5.2 0.8 to 2.0
Model No. (Pin Contact) Model No. (Socket Contact) Applicable wire (mm) Applicable wire (AWG) Insulation O.D. (mm) Qty / reel
SLM-01T-P1.3E SLF-01T-P1.3E 0.13~0.5 26~20 1.3~2.7 6,000
SLM-41T-P1.3E SLF-41T-P1.3E 0.5~1.25 20~16 1.9~3.4 4,000
SLM-42T-P1.3E * SLF-42T-P1.3E * 0.3~0.7 22~20 1.7~2.4 4,000
Contact Type Crimp machine Crimp applicator Dies Crimp applicator with dies
SLM-01T-P1.3E MKS-L MK/SLF/M-01-13E APLMK SLF/M01-13E
SLF-01T-P1.3E MKS-SC SC/SLF/M-01-13E APLSC SLF/M01-13E
SLM-42T-P1.3E APKEN MK/SLF/M-42-13E APLMK SLF/M42-13E
SLF-42T-P1.3E - - - -
SLM-41T-P1.3E MKS-L MK/SLF/M-41-13E APLMK SLF/M41-13E
SLF-41T-P1.3E MKS-SC SC/SLF/M-41-13E APLSC SLF/M41-13E
