M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
Specifications
Brand Name :
Cablein
Certification :
CE, ROHS, TUV , ETL
Place of Origin :
Shenzhen China
MOQ :
100PCS
Price :
The price ranges from $1 to $4 USD per pieces
Payment Terms :
T/T,Western Union
Supply Ability :
Monthly output: 10,000 sets
Delivery Time :
5-8 Working Days
Packaging Details :
High Quality export carton
Operating Temperature :
-25℃-+80℃
Ip Rating :
IP67/IP68/IP69
Certifications :
UL/CE/RoHS
Connecting Mode :
plug/unplug
Mating Style :
Screw
Contact Pin Material :
Gold-Plated Brass
Pin Number :
2-5 needle
Cable Fixing :
OD=5mm--14mm
Description
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
Specifications

Rating: IP67/IP68

Installation Type: Wire-to-Wire

Connection Type: Screw Locking

Pin: 5

Waterproof Ring: 5-9mm 9-12mm 10-14mm

Applicable Wire Gauge: 0.5mm²-2.5mm²

Material: PA66

Datasheet
Parameter Specification
Product Name M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
Wiring Range 0.5mm² -2.5 mm²
Rated Current 24A
Operating Voltage 0.4KV
Ingress Protection (IP) Rating IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Advantages
  1. 1-in 2-Out Compact Design

    Enables efficient power or signal distribution from a single source, simplifying wiring and saving space.

  2. IP68 Rated for Harsh Environments

    Fully waterproof and dustproof, with a robust construction that operates reliably from -40°C to +100°C.

  3. Secure Screw Lock Mechanism

    Ensures a vibration-resistant, stable connection that won't loosen, preventing downtime.

  4. Straight-Through for Easy Wiring

    Features an accessible, straight-through design that allows for quick and tool-friendly installation.

Product Images

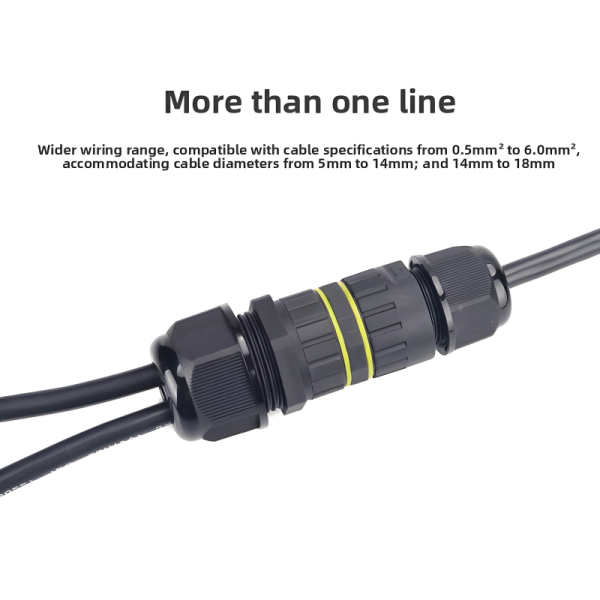

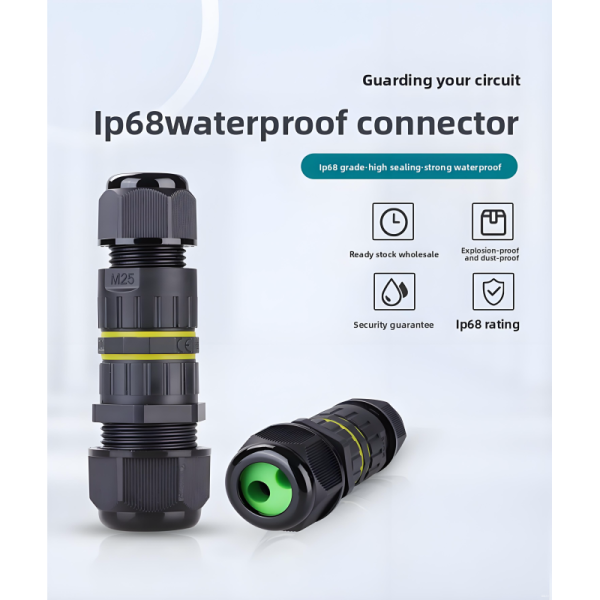

M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 OutM25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 OutM25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 OutM25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 OutM25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 OutM25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 OutM25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
FAQ
Question: What is the primary application of the 1-in 2-out design?

This design is ideal for daisy-chaining or power/signal splitting. You can efficiently connect a single power source to two separate devices, such as linking two sensors, powering a main unit and an auxiliary light, or simplifying wiring in control cabinets, which significantly reduces installation time and cost.

Question: How reliable is the IP68 waterproof rating in real-world conditions?

Our IP68 rating is rigorously tested. It guarantees complete protection against dust ingress and can be continuously submerged in water over 1 meter deep for extended periods. This makes it perfectly suited for harsh environments like outdoor installations, washdown areas in industrial settings, and exposed machinery.

Question: Is the screw locking mechanism vibration-proof and easy to install?

Yes. The threaded screw-lock mechanism provides a secure, vibration-resistant connection that prevents accidental disconnection in high-motion environments. The straight-through design also allows for straightforward wiring, making installation tool-friendly and quick.
