M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection
M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection
Specifications
Brand Name :
Cablein
Certification :
CE, ROHS, TUV , ETL
Place of Origin :
Shenzhen China
MOQ :
100PCS
Price :
The price ranges from $1 to $4 USD per pieces
Payment Terms :
T/T,Western Union
Supply Ability :
Monthly output: 10,000 sets
Delivery Time :
5-8 Working Days
Packaging Details :
High Quality export carton
Certifications :
UL, CE, RoHS
Mating Style :
Male and Female
Voltage :
450V
Connector Style :
Straight
Cable Length :
per your requirement
Type :
Circular
Installation Style :
AC/DC
Dustproof :
100% Dustproof
Description
Waterproof Connector M25 2-Pin IP68 Easy Snap-Lock For Fast Installation
Specifications

Connection Type: Quick Connect

Installation Type: Wire-to-Wire

Rating:IP68

Material: PA66

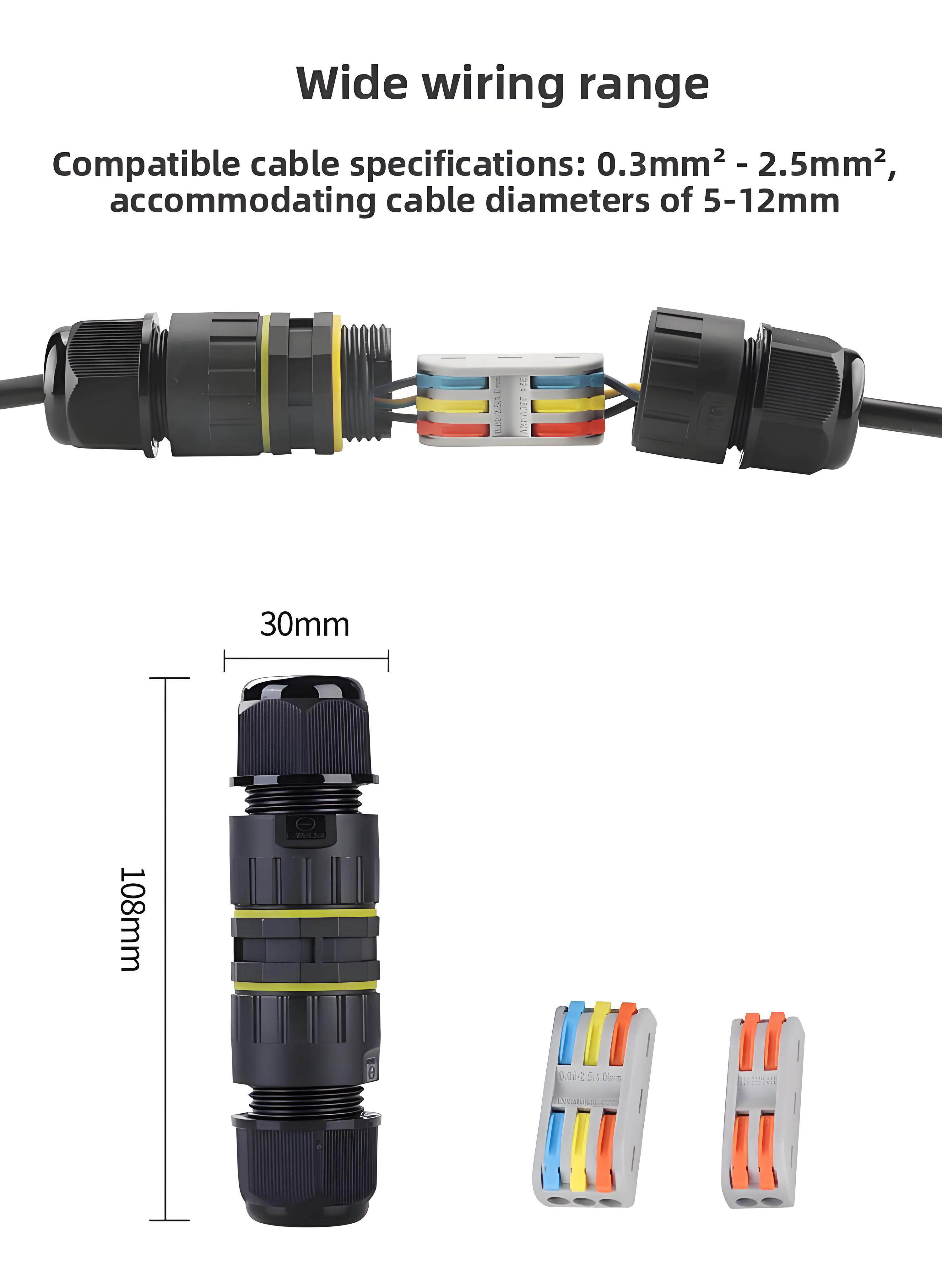

Applicable Wire Gauge: 0.5mm²-2.5mm²

Waterproof Ring: 5-9mm 9-12mm 10-14mm

Pin: 2

Datasheet
Parameter Specification
Product Name  Waterproof Connector M25 2-Pin IP68 Easy Snap-Lock For Fast Installation
Wiring Range 0.5 - 2.5 mm²
Rated Current 16A Max
Operating Voltage 450V Max
Ingress Protection (IP) Rating IP67 /IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Advantages
  1. Effortless Snap-Lock Connection
  2. IP68 Rating for Ultimate Water & Dust Protection
  3. Robust M25 Design for Harsh Environments
  4. Secure and Vibration-Resistant Link

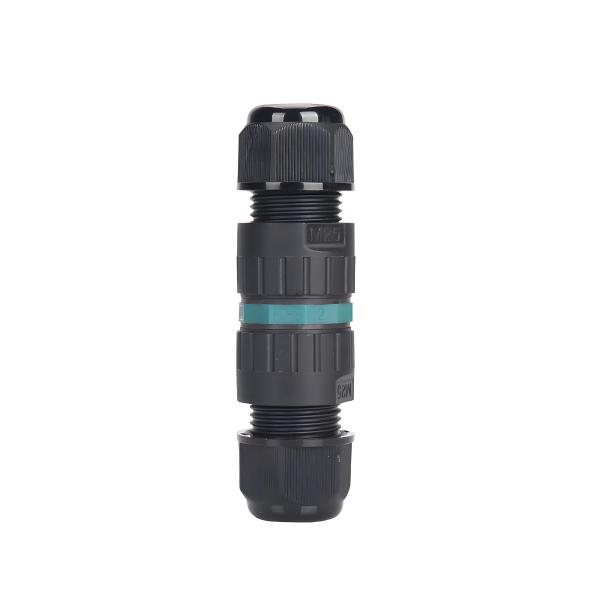

Product Images
M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection
FAQ
Q1: How does the easy snap-lock mechanism work?
Simply push the connector halves together until you hear or feel a distinct click. This indicates a secure, waterproof seal is achieved—no tools or twisting needed.
Q2: Is it truly waterproof, and in what conditions?
Yes, with its IP68 rating, it is completely protected against dust and can be continuously submerged in water under specified conditions, making it ideal for outdoor, industrial, or washdown environments.
Q3: What is the operating temperature range?
The connector is designed to perform reliably in a wide temperature range, typically from -25°C to +85°C, ensuring stability in both hot and cold settings.
