2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
Specifications
Brand Name :
Ulinkcon
Model Number :
M16
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
3~6 working days
Packaging Details :
High Quality export carton
Number of Pins :
2Pin
Current :
10A max. for Power
Rated voltage :
300V
Waterproof Rating :
IP67
Flame-resistant rating :
UL94-V0
Color :
Blue/Green/Yellow/Red
Description

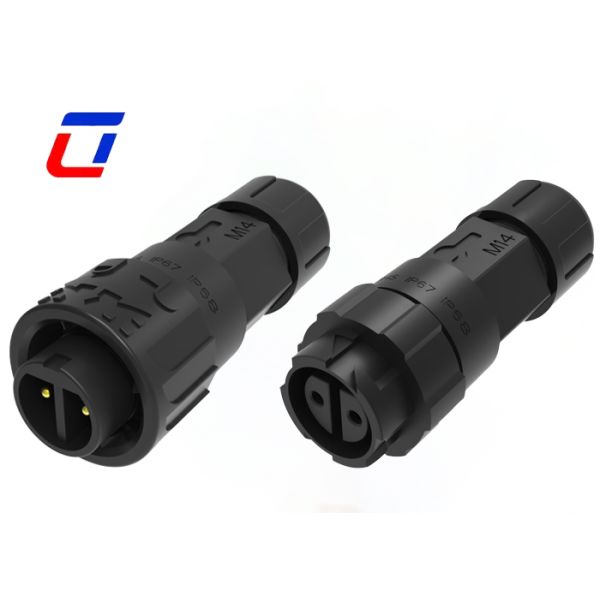

2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
Industrial Waterproof Circular Connector
This 2-pin circular power connector features a male-to-female plug-in design optimized for wire-to-wire connections. With a 300V rated voltage, it provides stable power supply for small to medium-power equipment. The M16 interface standard ensures precise pin alignment, smooth plugging, and reliable power transmission.
Professional Waterproof Performance
Equipped with high-standard waterproof construction, the integrated shell and cable sealing with custom waterproof rubber ring effectively resist rain, sand, oil, and humidity. Ideal for outdoor or challenging environments, it reduces faults caused by environmental factors.
Wire-to-Wire Connection Advantages
Designed specifically for wire-to-wire applications, the male and female plugs securely fix to cables, resisting pulling and vibration. The tool-free design enables convenient on-site plugging for high-frequency operations including temporary docking, maintenance, and cable extensions.
300V Adaptive Materials & Safety
Constructed with high-conductivity oxygen-free copper conductors featuring anti-oxidation tinning to reduce heat and loss during 300V transmission. The high-insulation engineering plastic shell offers excellent aging and impact resistance while isolating electromagnetic interference and preventing leakage risks.
Application Scenarios
Widely used in industrial control, security monitoring, smart home systems, new energy auxiliary equipment, and instrumentation. Particularly suitable for small to medium-power devices requiring convenience and waterproofing, such as outdoor sensors and portable instruments.
Main Features
  • Push lock quick easy release system
  • Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
  • Field-installable variants for wire-to-wire and wire-to-board configurations
  • High-current-rated waterproof connector suitable for prolonged operation up to 10A
  • Cable assembly services provided with customization options
  • OEM/ODM partnerships available
Electrical Parameters
Number of Poles 2Pin waterproof connector
Current Rating 10A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Application Industries
  • Communications Applications
  • Product Coding Machines
  • Inventory Product Coding
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Communications Equipment
  • Heavy Machinery
Production Dimension
2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
More Technical Details
2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors 2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
Frequently Asked Questions
How can I get samples?
We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address, and we will dispatch samples immediately.
Who is responsible for customs clearance? Do you provide necessary documents?
We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are the buyer's responsibility under EXW/FOB terms. We can assist with document preparation as needed.
What shipping methods do you offer? How long is the delivery time?
We provide multiple shipping options: Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; Air freight: 7-15 working days; Sea freight: 20-45 working days. Delivery times vary by destination and shipping method.
