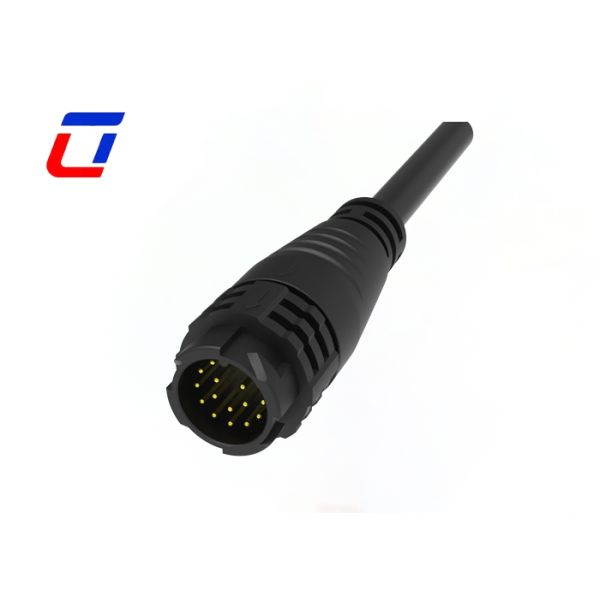

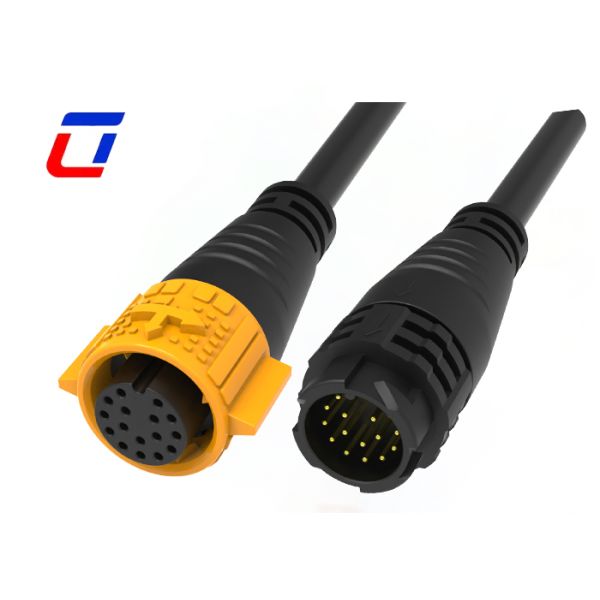

M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector
M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector
M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector
M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector
M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector
M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Current rating :
5A
Pin :
16Pin
Rated voltage :
300V
Material :
Nylon
Operating temperature :
-40℃-+105℃
Contact Material :
Brass Gold-Plated
Description
M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector
Product Overview
M19 IP67 Wire Connectors Male To Female Industrial Connector featuring a 16-pin configuration with IP67 protection level. Designed specifically for wire-to-wire connections, these connectors ensure firm soldered connections with low contact impedance for stable power and signal transmission. Excellent waterproof, dustproof, and vibration-resistant performance makes them ideal for complex working conditions.
Construction & Applications
Manufactured from weather-resistant engineering materials with precision sealing structure, these connectors effectively resist rain, dust, and moisture. Suitable for outdoor, humid, and dusty environments. Widely used in industrial control, security monitoring, outdoor electronic equipment, and new energy auxiliary devices, providing long-term reliable wire-to-wire connections.
Main Features
  • Push lock quick release system
  • Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
  • 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
  • Field assembly version: both wire to wire and wire to board options
  • Current rated 5A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome
Application Industries
  • Growth Lights
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Electrical Parameters
Number of Poles 16Pin
Current Rating 5A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max. Cable Cross Section Area 0.5mm² ~ 2.5mm²
M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector
Design Sketch
M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Q: What shipping methods do you offer? How long is the delivery time?
A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
Q: Can I have custom label?
A: Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
