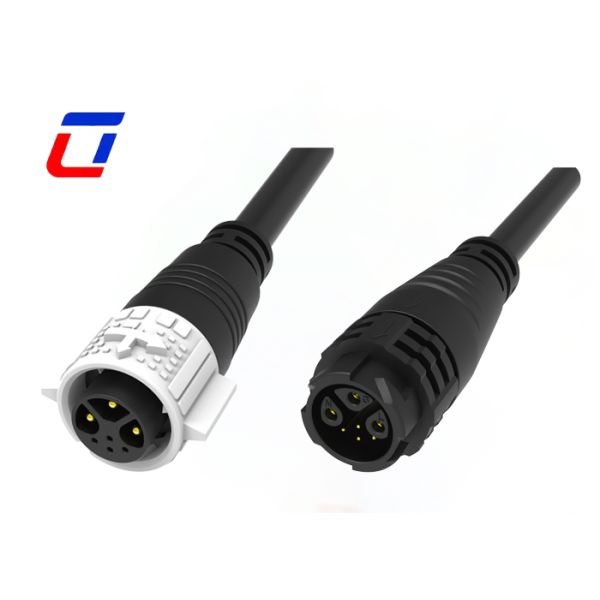

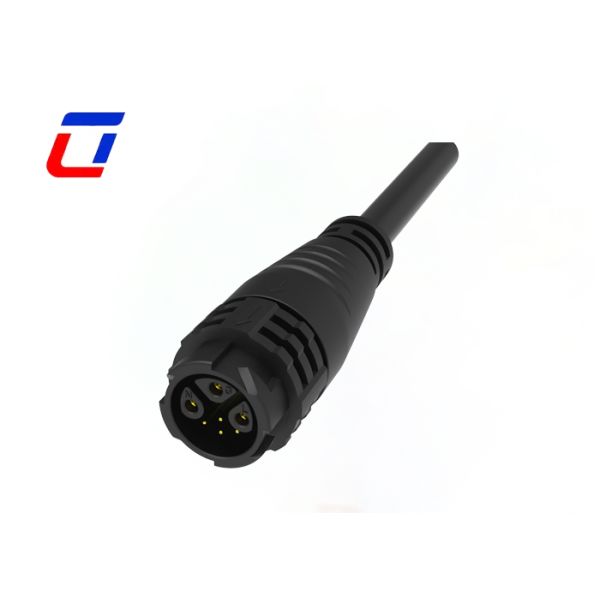

3+4 Pin Waterproof Wire Connectors M19 Push Lock Power Signal Molded Connector
3+4 Pin Waterproof Wire Connectors M19 Push Lock Power Signal Molded Connector
3+4 Pin Waterproof Wire Connectors M19 Push Lock Power Signal Molded Connector
3+4 Pin Waterproof Wire Connectors M19 Push Lock Power Signal Molded Connector
3+4 Pin Waterproof Wire Connectors M19 Push Lock Power Signal Molded Connector
3+4 Pin Waterproof Wire Connectors M19 Push Lock Power Signal Molded Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
3+4Pin
Rated voltage :
300V
Current rating :
15+5A
Connector type :
Quick connector
Material :
Nylon
Protection level :
IP67
Description
M19 3+4 Pin Waterproof Wire Connector
Outdoor waterproof M19 3+4 Pin IP67 rated connector for wire-to-wire applications, enabling simultaneous power and signal transmission with OEM customization support.
Product Overview
This UL94-V0 flame-retardant M19 3+4Pin waterproof connector features IP67 protection, supporting both power and signal transmission with OEM customization options. With excellent flame-retardant safety, reliable waterproof/dustproof performance, and precise transmission capabilities, it ensures stable circuit connections in complex industrial environments.
Key Features
UL94-V0 flame-retardant engineering plastic construction
IP67 waterproof and dustproof rating (1m immersion for 30 minutes)
Push-lock quick release system for easy connection
Multiple pin configurations available: 2Pin to 18Pin options
20A maximum current rating for continuous operation
Field assembly versions for wire-to-wire and wire-to-board applications
OEM/ODM customization services available
Electrical Specifications
Parameter Specification
Number of Poles 3+4Pin
Current Rating 20A max
Voltage Rating 300VAC max / 600VAC max
Durability Voltage 1500VAC @ 60s
Contact Resistance 10 mΩ max
Insulation Resistance 500 MΩ at 500VDC
Technical Specifications
Parameter Specification
Operating Temperature -40°C to +105°C
IP Rating IP67 (1m / 30min when mated)
Housing Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Wire Size Range 3.0mm - 10.0mm OD
Cable Cross Section 0.5mm² - 2.5mm²
Application Industries
Growth Lights
Communications Equipment
Product Coding Machines
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Equipment
Heavy Machinery
Product Images
3+4 Pin Waterproof Wire Connectors M19 Push Lock Power Signal Molded Connector 3+4 Pin Waterproof Wire Connectors M19 Push Lock Power Signal Molded Connector 3+4 Pin Waterproof Wire Connectors M19 Push Lock Power Signal Molded Connector
Frequently Asked Questions
Are you a factory or trading company?
We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
How to track my shipment?
Once goods are shipped, we provide tracking numbers and logistics platform links for real-time status updates. You can also contact our team for assistance.
