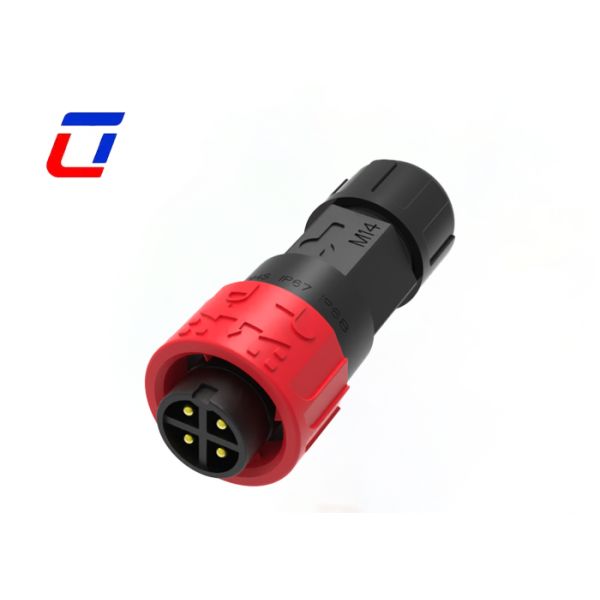

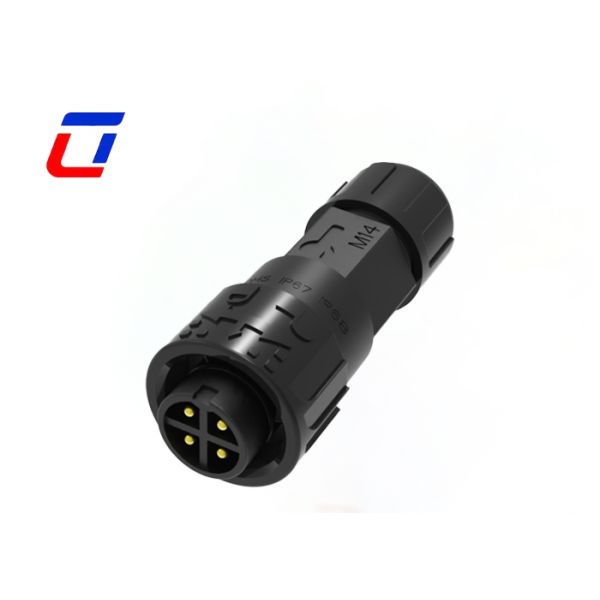

M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors
M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors
M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors
M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors
M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors
M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors
Specifications
Brand Name :
Ulinkcon
Model Number :
M16
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
3~6 working days
Packaging Details :
High Quality export carton
Number of contacts :
4 Pin
Current :
Max 10A
Voltage rating :
300 V
Waterproof level :
IP67
Flame-resistant rating :
UL94-V0
Temperature :
-40~105℃
Description
M16 4 Pin IP67 Power Connectors
300V Waterproof Low Voltage Wire Connectors
4 Pin LED Waterproof Connector
M16 10A PA66 Push Locking Wire To Wire Connectors
Industrial Waterproof Circular Connector
Core Parameters
Following the M16 interface standard, this 4-pin connector features a 10A rated current and is specifically designed for power transmission applications. TUV certified for compliance with relevant safety standards.
Protection Performance
Excellent waterproof and dustproof capabilities effectively resist dust intrusion and water exposure, adapting to power connection needs in various complex working conditions.
Structural Advantages
Male and female plugs feature precise alignment for smooth insertion and extraction. The connection is tight and firm with excellent anti-vibration and anti-drop performance, ensuring stable power transmission.
Application Scenarios
Ideal for industrial control power supplies, automation equipment, instrument power connections, and other core fields requiring reliable connection support for stable power supply.
Main Features
  • Push lock quick release system for hassle-free operation
  • Multiple core configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
  • Field assembly versions: wire to wire / wire to board
  • High current rated waterproof connector suitable for 10A continuous operation
  • Cable assembly service supported with customization options
  • OEM/ODM services welcome
Electrical Parameters
Number of Poles 4Pin waterproof connector
Current Rating 10A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Application Industries
  • Communications Applications
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar Systems
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Production Dimension
M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors
More Technical Details
M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors
Frequently Asked Questions
Q1: How many materials can you provide?
A1: We offer various materials for connectors and cables. Connectors typically use PVC/Nylon materials, while cables use PVC/Rubber/Silicone materials. We can also select materials according to your specific requirements.
Q2: Do you support product customization?
A2: Yes, we offer customization for specifications, colors, and packaging. Please provide your detailed requirements, and we will provide a quote with a sample confirmation process.
Q3: Can I pay after receiving the goods?
A3: For first-time cooperation, advance payment is required to ensure smooth production. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
