Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector
Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector
Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector
Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector
Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector
Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M25
Certification :
CE,TUV,UL,RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C,Western Union
Supply Ability :
100000 pairs each month
Delivery Time :
3~6working days
Packaging Details :
High Quality export carton
Current :
50A max. for Power
Number of Pins :
3 pin for power
Operating Voltage :
300V
Waterproof Rating :
IP67
Operating temperature :
-40℃-+105℃
Flame-resistant rating :
UL94-V0
Description
Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector
Industrial Circular Connector M25 3 Pin 50A IP67 Waterproof Connector
Designed specifically for harsh industrial environments, the Industrial Circular Connector M25 3 Pin 50A IP67 Waterproof Connector delivers exceptional reliability for industrial power connections. With robust high-current transmission stability and superior environmental resistance, this connector is ideal for industrial automation, new energy equipment, and outdoor operation machinery, providing essential connection support in demanding conditions.
Featuring a standardized M25 circular structure with 3-pin configuration, this connector meets three-phase or multi-circuit DC/AC power supply requirements. The 50A high rated current capacity handles power transmission for medium to high-power equipment without overheating or overloading risks. IP67 certified protection effectively blocks water immersion, splashing, dust, and oil contamination, maintaining stable performance in high humidity, heavy dust, and vibration-prone environments.
Application Industries
  • Communications Applications
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Communications Equipment
  • Heavy Machinery
Quick Details of IP67 Waterproof Connector
This connector model supports various integrated power and signal applications with a core push-lock structure for easy operation. It automatically locks securely with one-second insertion, eliminating complex installation steps and enabling quick assembly.
The integrated power-and-signal design eliminates the need for separate connectors, making it particularly suitable for space-constrained installations where maximizing internal equipment space utilization is critical.
Ulinkcon provides exclusive cable assembly services for multi-pin connectors. Share your detailed cable requirements (gauge, length, insulation material) for tailored customization solutions that fit your specific application scenarios.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max Cable Cross Section Area 0.5mm² ~ 6.0mm²

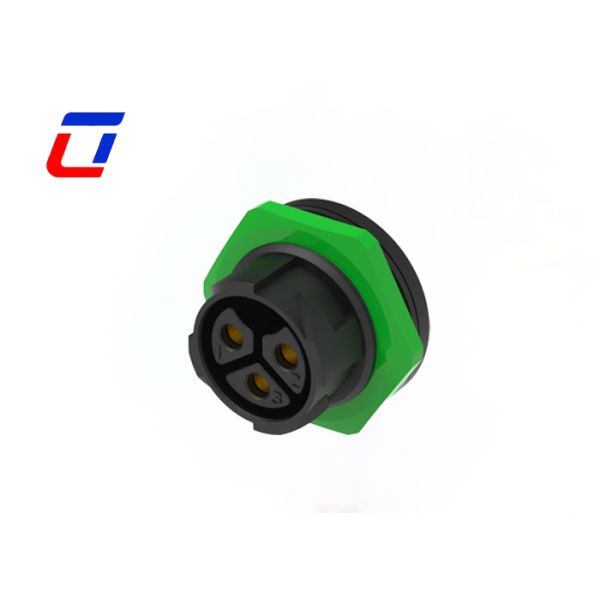

Product Images
Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
Q: How can I get samples?
A: We are pleased to offer samples, with freight costs covered by the customer. Please provide your courier account number and detailed address, and we will dispatch samples immediately.
Q: How many materials can you provide?
A: We offer various materials for connectors and cables. Connectors typically use PVC/Nylon materials, while cables use PVC/Rubber/Silicone materials. We can also select materials according to your specific requirements.
