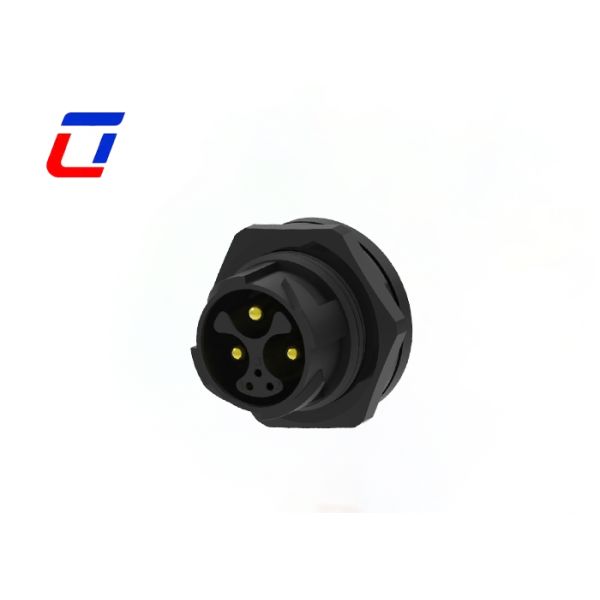

M25 3+3 Pin Reliable PA66 Waterproof Connectors IP67 Panel Mount Circular Connector
Waterproof Connector M25 3+3 Pin IP67 15A Male Female Quick Lock Plug Socket
Main Features
  • Push lock quick release system
  • Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
  • Field assembly version: both wire to wire and wire to board options
  • Current rated 20A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome
Product Overview
The M25 3+3 Pin IP67 Waterproof Quick-Lock Male-Female Connector is engineered for synchronous transmission of "power + signal" in medium and low-power equipment. Featuring a 3+3 pin functional partition design, M25 standard interface, and IP67 protection level, this connector is ideal for applications requiring high signal stability and power supply safety, including smart home control modules, medical monitoring equipment, small new energy storage devices, and outdoor security monitoring systems.
Utilizing an M25 circular structural design with separate 3-pin power circuit and 3-pin signal circuit layout, this connector offers rated voltage of 300V and rated current of 15A, enabling independent and interference-free transmission of power and signal. The quick-lock structure allows for one-second docking, addressing traditional connector challenges of power-signal interference and cumbersome locking operations.
Technical Specifications
Connector SystemCable-to-Board
SealableYes
Connector & Contact Terminates ToWire & Cable
Circular Connector TypePlug, Receptacle
Shell TypePlastic Shell
Product TypeConnector Kit
Number of Positions3+3
Number of Signal Positions3
Contacts PreloadedYes
Operating Voltage (VAC)600V max.
Operating Voltage (VDC)600V max.
Shell MaterialPA66
Circular Connector Insulation Material TypeLow Fire Hazard Thermoplastic
Hermetically SealedYes
Entry StyleSide
Environmental Protection TypeElastomer Sealed, Hermetically Sealed
O-Ring MaterialElastomer Sealed, Hermetically Sealed
Environmental ProtectionYes
Contact Current Rating (Max) (A)15A max.
Circular Connector Contact TypePin-Socket
Connector Mounting TypeCable Mount (Free-Hanging)
Mating Alignment TypeKeyed
Mating RetentionWith
Wire Size (AWG)20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)-40 ~105°C
IP Water Sealing LevelIP67
IP Dust Sealing Level6
UL Flammability RatingUL 94V-0
Application Industries
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Production Dimension
M25 3+3 Pin Reliable PA66 Waterproof Connectors IP67 Panel Mount Circular Connector
Technical Details
M25 3+3 Pin Reliable PA66 Waterproof Connectors IP67 Panel Mount Circular Connector
Frequently Asked Questions
What is rated voltage?
Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.
What is rated Current?
Rated current, also known as operating current. When operated below the rated current with proper voltage, connectors generally work properly. During connector design, thermal considerations ensure the connector meets rated current requirements, as current flow generates heat due to conductor resistance and contact resistance.
What is your Minimum Order Quantity (MOQ)?
The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
