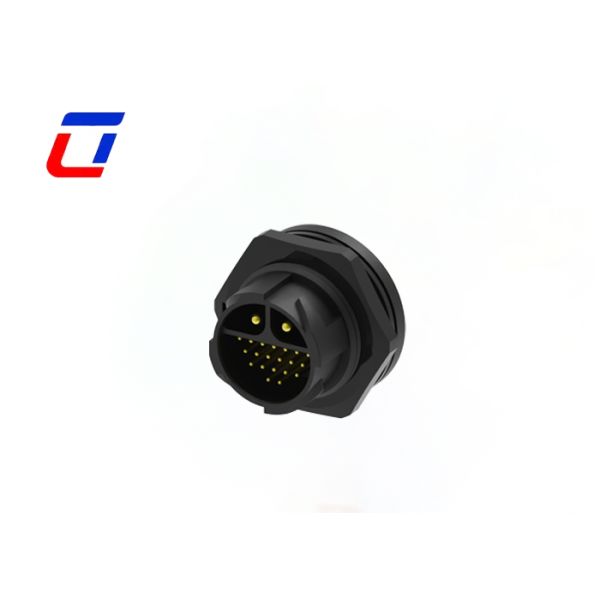

M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector
Product Overview

Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt Wire To Board

Key Features
  • Dual-Circuit 2+20 Pin Layout: Two separate circuits with 2 pins for high-power transmission and 20 pins for multi-channel data signals
  • M25 Standard Interface with Tool-Free Quick Lock: Push-to-lock mechanism enables one-second installation with automatic vibration-proof connection
  • Combined Power & Signal Design: Space-saving integration eliminates need for separate connectors
  • Custom Cable Assembly Solutions: Ulinkcon provides personalized cable assembly services
  • Reliable Performance in Harsh Environments: Excellent waterproof and dustproof capabilities for outdoor industrial conditions
Application Industries
  • Communications Equipment
  • Product Coding Machines & Inkjet Systems
  • Solar Systems
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
  • Industrial Inkjet Equipment
Technical Specifications
Electrical Parameters
Number of Poles 22pin wire to board connector
Current Rating 20A +5A
Voltage Rating 300VAC max
Durability Voltage 2500VAC @ 60 s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 40A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max Cable Cross Section Area 0.5mm² ~ 6.0mm²
Product Configuration
M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector Types
Product Dimension
M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector Types
Technical Details
M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector Types
Frequently Asked Questions
What is rated voltage?
Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.
How many materials can you provide?
We offer various materials for connectors and cables. Connectors typically use PVC/Nylon material, while cables use PVC/Rubber/Silicone material. We can also select materials according to your specific requirements.
How to track my shipment?
Once goods are shipped, we provide tracking numbers and logistics platform links. You can track real-time status online or contact our team for updates.
