Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
5~8 working days
Packaging Details :
Box
Number of Pins :
3+2PIN
Waterproof Rating :
IP67
Temperature Range :
-40℃~+105℃
Type :
waterproof connector
Flame-resistant rating :
UL94-V0
Contact Material :
Brass Gold-Plated
Description

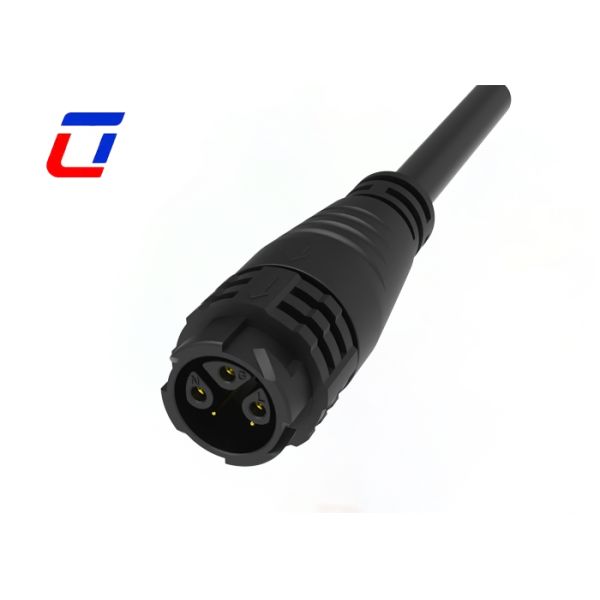

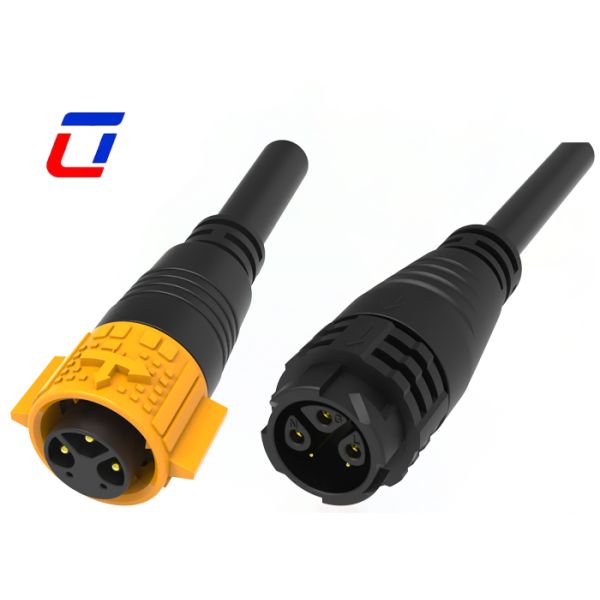

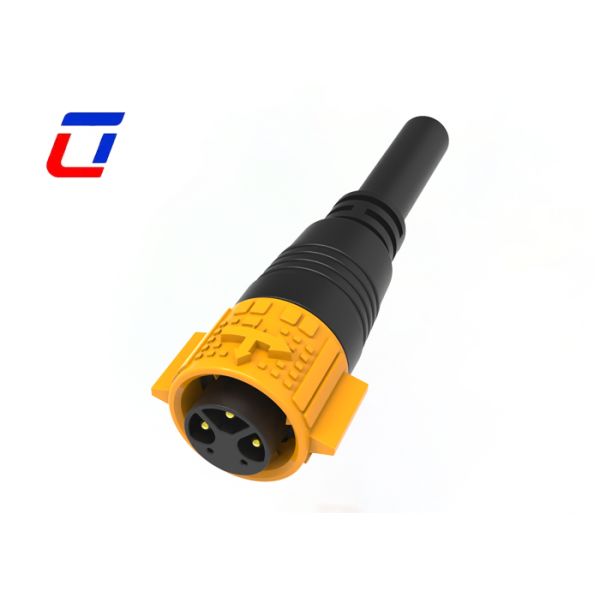

M19 3+2 Pin Inline Waterproof Connector Push Lock Power Signal Connector
Product Overview
Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector
Key Features
3+2 Pin Zoned Design: Power-Signal Separation
The 3+2 pin split layout (3 power + 2 data) delivers steady low-current power and smooth high-frequency signal transmission with minimal interference. This structural separation eradicates power fluctuation interference, ensuring reliable dual transmission for low-current scenarios—perfect for sensors and small controllers that demand precision.
Low-Current Tuned for Maximum Reliability
Engineered exclusively for ≤3A applications with gold-plated copper alloy contacts (≤5mΩ resistance) boasting exceptional anti-oxidation and wear resistance for long-term use. Precision-stamped pins create a tight, secure wire fit, eliminating contact issues and signal loss.
M19 Self-Locking: Secure & Weatherproof
The standard M19 self-locking mechanism engages firmly to resist vibration and pulling, preventing accidental disconnections. Combined with high-strength ABS housing and sealing ring, it achieves IP67 dust and splash protection for both indoor and outdoor non-extreme humid environments.
Quick Wire-to-Wire Installation
Compatible with crimping and soldering for 18-24AWG wires. The 3-8mm adjustable cable gland prevents pin loosening, allowing efficient installation for all skill levels.
Technical Specifications
Product Type Features Connector System: Cable-to-Cable
Sealable: Yes
Connector & Contact Terminates To: Wire & Cable
Circular Connector Type: Plug, Receptacle
Shell Type: Plastic Shell
Product Type: Connector Kit
Electrical Characteristics Number of Poles: 3+2
Current Rating: 15A+5A max
Voltage Rating: 600VAC max
Durability Voltage: 2500VAC @ 60 s.
Body Features Shell Material: PA66
Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic
Hermetically Sealed: Yes
Entry Style: Side
Environmental Protection Type: Elastomer Sealed, Hermetically Sealed
O-Ring Material: Elastomer Sealed, Hermetically Sealed
Environmental Protection: Yes
Usage Conditions Operating Temperature Range: -40°C to 105°C
IP Water Sealing Level: IP67
IP Dust Sealing Level: 6
Operation/Application Durability Rating: 250, 251 cycles
Industry Standards UL Flammability Rating: UL 94V-0
Additional Features
  • Push lock quick release system
  • Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
  • 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
  • Field assembly version: both wire to wire and wire to board options
  • Current rated 20A for long time working
  • Cable assembly service supported
  • OEM/ODM welcome
Application Industries
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery
Production Dimension
M19 3+2 Pin Inline Waterproof Connector Push Lock Power Signal Connector Factory
Technical Details
M19 3+2 Pin Inline Waterproof Connector Push Lock Power Signal Connector Factory
Frequently Asked Questions
Are your products certified? What certifications do you have?
All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Is there a discount for large-quantity orders?
Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
How to track my shipment?
Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
