M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector
M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector
M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector
M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector
M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector
M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
14Pin
Gender :
Male to Female
Material :
Nylon
Protection level :
IP67
Flame-resistant rating :
UL94-V0
Contact Material :
Brass Gold-Plated
Description
M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector
Product Overview

This M19 14-Pin Push-Lock Waterproof Connector features gold-plated contacts and OEM customization capabilities. Designed for demanding industrial applications, it offers push-lock convenience, superior conductivity, and robust protection against water, dust, and corrosion.

Key Advantages
  • Push-lock design: Tool-free operation with secure locking mechanism resistant to external loosening
  • 14 gold-plated pins: Low resistance, anti-oxidation/corrosion properties for harsh environments
  • IP67 waterproof rating: Integrated sealing blocks impurities, ensures stable operation in humid conditions
  • Quick-connect system: Manual operation with clear feedback prevents poor contact
Main Features
  • Push lock quick release system
  • Multiple pin configurations available: 2Pin-18Pin for power and signal applications
  • Field assembly versions: Wire-to-wire and wire-to-board options
  • Current rating: 5A continuous operation
  • Cable assembly service and OEM/ODM customization supported
Electrical Parameters
Number of Poles 14Pin
Current Rating 5A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Resistance 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Wire Size OD Range 3.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery

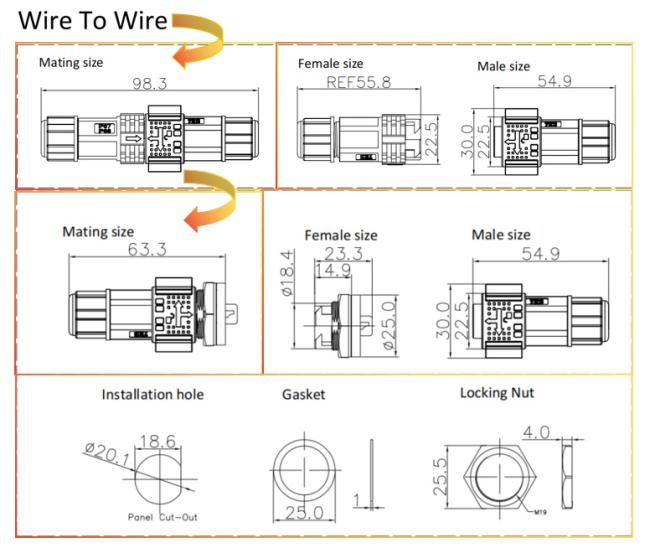

Design Specifications
M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Q: How do I place an order? What is the process?
A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
Q: Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
