M19 2+20 Pin Led Light Connector Quick Connect Male Female Cable Connector
M19 2+20 Pin Led Light Connector Quick Connect Male Female Cable Connector
M19 2+20 Pin Led Light Connector Quick Connect Male Female Cable Connector
M19 2+20 Pin Led Light Connector Quick Connect Male Female Cable Connector
M19 2+20 Pin Led Light Connector Quick Connect Male Female Cable Connector
M19 2+20 Pin Led Light Connector Quick Connect Male Female Cable Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Material :
PA66&Copper Alloy
Rated voltage :
300V
Protection level :
IP67
Flame-resistant rating :
UL94-V0
Color :
White Blue Red Black Yellow
Connecting mode :
Push Lock
Description

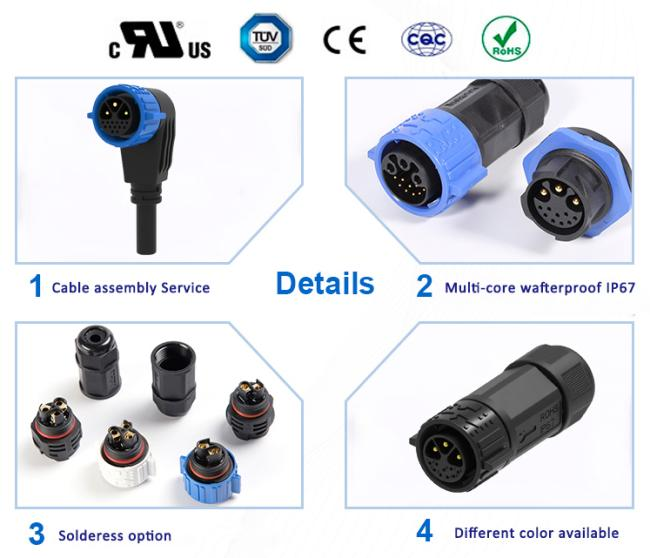

M19 2+20 Pin LED Light Connector Quick Connect Male Female Cable Connector
Product Overview
Waterproof multi 2 pin power connectors with M19 20 pin data connector designed for reliable performance in demanding environments.
Core Specifications & Dual Current Adaptation
2+20Pin precision layout separates power and signal channels. M19 standard circular interface with full male-female connectors supports 15A+5A dual rated current output. 15A for high-power supply, 5A for low-power signal transmission, meeting multi-load collaboration. Features precise docking, stable contact impedance, cable compatibility and efficient installation.
High-Level Waterproof Protection
IP67 waterproof and dustproof, integrated sealed housing with high-performance rubber ring resists rain, splashes, dust and short-term immersion. Eliminates short circuit and leakage risks in dual current transmission, ensuring stability in outdoor, humid and complex environments.
Secure Male-Female Plug-In Design
Precise snap-on structure with automatic locking after insertion, ensuring firm connection against vibration and pulling. Easy unlocking without professional tools facilitates maintenance, suitable for frequent plugging scenarios.
Application Industries
  • Growth Lights
  • Communications Application
  • Product Coding Machines
  • Inventory Product Coding
  • Inkjet Systems
  • Solar System
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Communications Equipment
  • Heavy Machinery
Electrical Parameters
Number of Poles 2+20 pin waterproof connector
Current Rating 15A+5A
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 20A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Design Sketch
M19 2+20 Pin Led Light Connector Quick Connect Male Female Cable Connector M19 2+20 Pin Led Light Connector Quick Connect Male Female Cable Connector
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Q: How can I get samples?
A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
Q: Is there a discount for large-quantity orders?
A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
