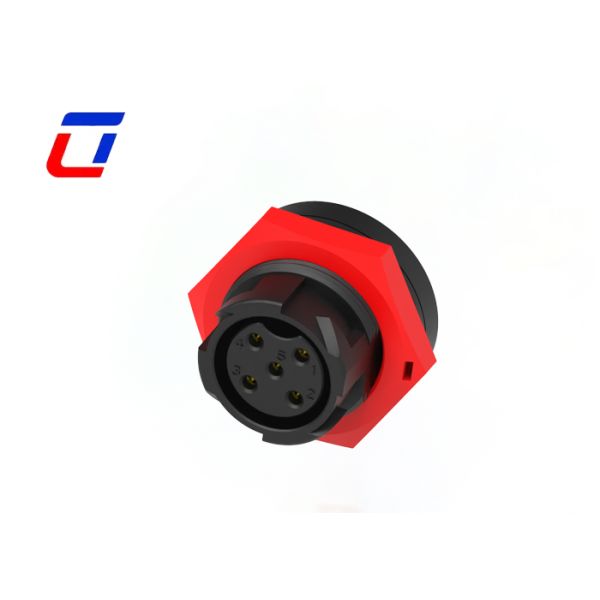

M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector
M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector
M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector
M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector
M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector
M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Rated voltage :
300V
Pin :
5Pin
Flame-resistant rating :
UL94-V0
Gender :
Male to Female
Operating temperature :
-40℃~+105℃
Material :
PA66
Description
M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector
Product Overview
5 Pin Circular M19 PA66 300V Male To Female Waterproof Connector designed for reliable power transmission in demanding environments.
Main Features
  • Push lock quick release system for easy connection
  • Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for power applications
  • Combined power and signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
  • Signal-only variants: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
  • Field assembly versions available for wire-to-wire and wire-to-board applications
  • Rated for 20A continuous current operation
  • Cable assembly services supported with custom options
  • OEM/ODM partnerships welcome
Product Description
Constructed from high-strength PA66 material, this M19 5-pin circular connector supports 300V high-voltage transmission. Featuring a male-to-female design with IP67 waterproof and dustproof rating, it's ideal for diverse power connection scenarios. High-conductivity gold-plated brass pins minimize transmission loss, while the PA66 housing withstands extreme temperatures (-40℃ to +105℃), corrosion, and aging. Equipped with foolproof alignment and secure locking mechanism, it ensures safe and reliable plugging operations. Widely used in industrial control systems, high-voltage lighting, and outdoor testing equipment.
Electrical Parameters
Number of Poles 5Pin
Current Rating 20A maximum
Voltage Rating 300VAC maximum
Durability Voltage 1000VAC @ 60 seconds
Technical Parameters
Contact Resistance 10 mΩ maximum
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C to +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC maximum
Current Rating 15A maximum
Minimum Wire Size OD 3.0mm to 6.0mm
Maximum Wire Size OD 8.0mm to 10.0mm
Maximum Cable Cross Section Area 0.5mm² to 2.5mm²
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Product Design
M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector
Frequently Asked Questions
Do you accept other payment currencies besides USD?
Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
Are your products certified? What certifications do you have?
All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
How can I get samples?
We are pleased to offer samples for evaluation. Shipping costs are the responsibility of the customer. Please provide your courier account number and detailed shipping address, and we will dispatch samples promptly.
