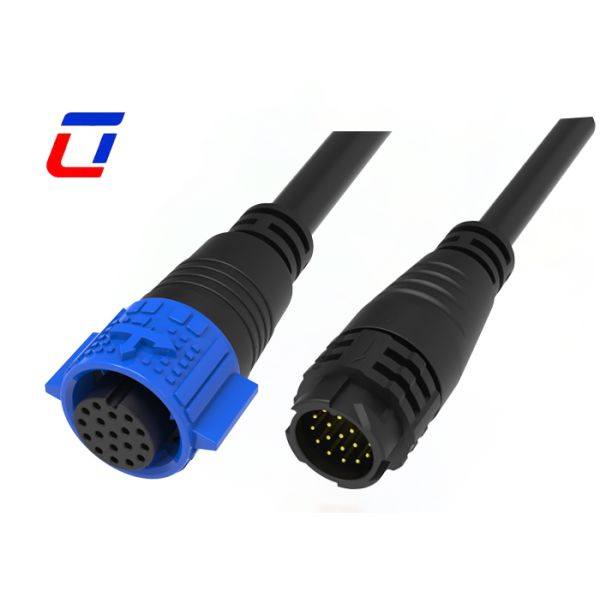

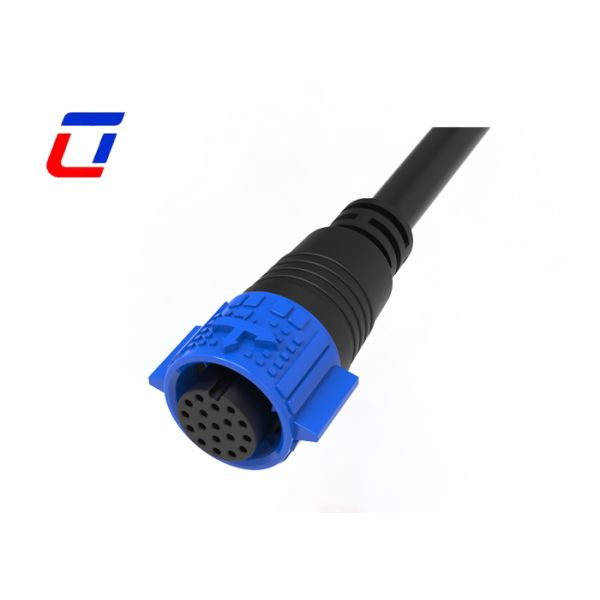

M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
18Pin
Current rating :
5A For Signal
Rated voltage :
300V
Material :
Nylon
Flame-resistant rating :
UL94-V0
Sealing Material :
Sealing Gasket
Description
IP67 Waterproof Connectors M19 18 Pin Wire To Board For Data
Product Overview

18 Pin Cable Connector M19 Wire To Wire / Board Outdoor Quick Lock Signal Connectors

Key Features
  • Specification: M19 standard, 18-pin design, specially adapted for signal transmission of communication equipment
  • Protection: IP67 waterproof and dustproof, resistant to outdoor rain and dust, suitable for harsh outdoor environments
  • Connection: Quick-connect design, smooth plugging and firm locking, improving on-site installation and maintenance efficiency
  • Transmission: Pins made of high-conductivity material, stable signal transmission, reducing interference and attenuation
  • Durability: UV-resistant, impact-resistant shell, high and low temperature resistant, suitable for long-term outdoor use
  • Application: Directly connect to various outdoor communication equipment, such as base stations, outdoor switches, etc.
Technical Specifications
Parameter Specification
Number of Poles 18Pin
Current Rating 5A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Configuration Options
  • Push lock quick release system
  • Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
  • 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
  • Field assembly version: both wire to wire and wire to board options
  • Current rated 5A for long time working
  • Cable assembly service supported
  • OEM/ODM welcome
Application Industries
  • Growth Lights
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Product Design
M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
Frequently Asked Questions
Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How to buy your products?

A: You need to do as followings:

  • Confirm Current Rating and Number of Contacts
  • Confirm Assembly style
  • Confirm Cable Wire gauge
  • Confirm Cable Length and Material
Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
