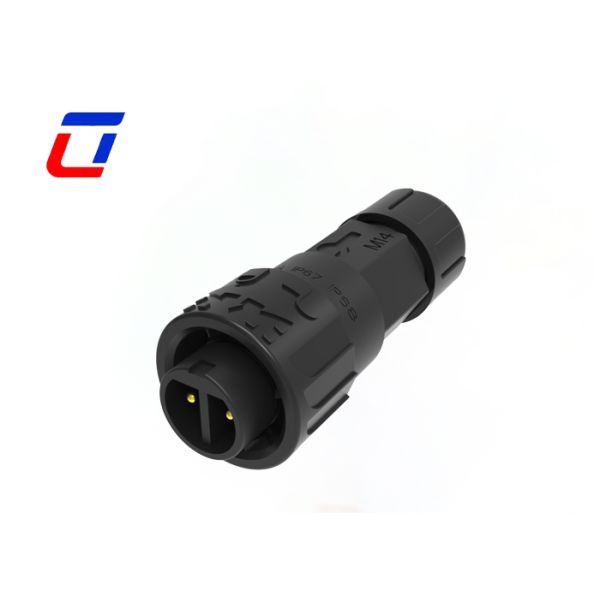

M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power
M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power
M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power
M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power
M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power
M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power
Specifications
Brand Name :
Ulinkcon
Model Number :
M16
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
3~6 working days
Packaging Details :
High Quality export carton
Number of Pins :
2Pin
Current :
10A max. for Power
Rated voltage :
300V
Waterproof Rating :
IP67
Flame-resistant rating :
UL94-V0
Contact Material :
Brass Gold-Plated
Description
M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power
Product Overview

2 Pin Circular Power Connector M16 300V Waterproof Male Female Connector

Industrial Waterproof Circular Connector

M16 standard male and female connectors specially designed for power transmission scenarios, with a rated current of 10A and IP67 protection level. Equipped with a quick lock structure, focusing on waterproof, anti-drop and efficient power supply, suitable for various equipment that requires stable power connection.

Key Features
  • Push lock quick easy release system
  • Multi-core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
  • Field-installable variants: both wire-to-wire and wire-to-board configurations
  • High-current-rated waterproof connector: ideal for prolonged operation up to 10A
  • Cable assembly services provided - customization welcome
  • OEM/ODM partnerships accepted
Electrical Parameters
Parameter Specification
Number of Poles 2Pin waterproof connector
Current Rating 10A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s
Technical Parameters
Parameter Specification
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Application Industries
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Production Dimension
M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power
More Technical Details
M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power
Frequently Asked Questions
Q1: How can I get samples?
A1: We are pleased to offer samples, and the freight should be paid by yourself. Please provide your courier number and detailed address, and we will send the sample immediately.
Q2: Are your products certified? What certifications do you have?
A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3: Can I pay after receiving the goods?
A3: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
