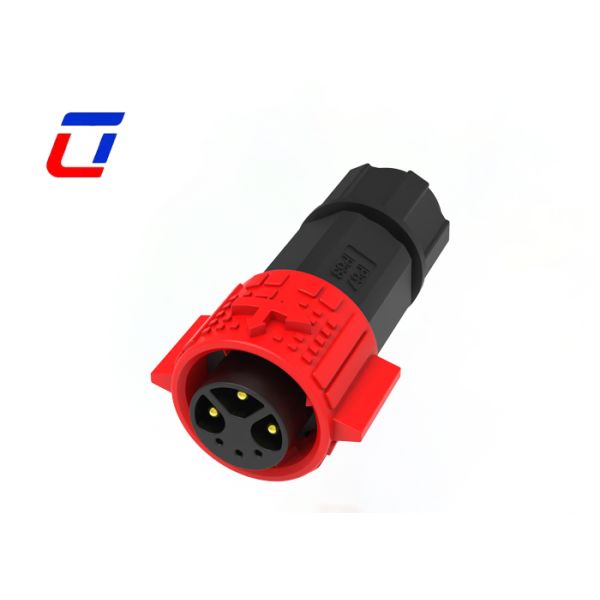

300V Molded Cable Connector M19 3+3 Multi Pin Quick Lock LED Wire To Board Connector
Product Overview
  • Basic Info: M19 male-female waterproof multi-pin connector features a 3+3 pin structure and a rated voltage of 300V AC/DC, which is specially designed for low-voltage power supply and signal transmission in various electrical scenarios, with stable and reliable overall performance.
  • 3+3 Pin Design: The scientific 3+3 pin layout divides functions clearly—3 pins are dedicated to stable power supply, and the other 3 pins are used for signal transmission. The separate channels effectively avoid mutual interference between power and signals, ensuring smooth and stable transmission effect.
  • Waterproof Performance: It reaches IP67 waterproof and dustproof rating, equipped with high-quality sealing components, which can effectively block water, dust and moisture from entering the connector, and is suitable for various indoor and outdoor harsh working environments.
  • Material & Installation: The shell is made of high-quality flame-retardant PA66 engineering plastic, which is durable, anti-aging and has good insulation performance. It adopts a quick plug-in structure, enabling tool-free installation and disassembly, which is simple and convenient to use.
  • Application: It is widely used in industrial control equipment, electronic devices, outdoor electrical appliances and other fields, providing safe and reliable connection support for various electrical systems.
Key Features
  • Push lock quick release system for easy installation
  • Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • Combined power/signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
  • Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
  • Field assembly versions: wire to wire and wire to board options
  • 20A current rating for continuous operation
  • Cable assembly service and OEM/ODM support available
Technical Specifications
Product Type Features Cable-to-Cable, Sealable, Plastic Shell, Connector Kit
Configuration Features 3+3 Pin (3 power, 3 signal), Contacts Preloaded
Electrical Characteristics 600V AC/DC max operating voltage, 15A max contact current rating
Body Features PA66 Shell Material, Low Fire Hazard Thermoplastic, IP67 Rated
Contact Features Pin-Socket Contact Type
Mechanical Attachment Cable Mount, Keyed Alignment, Mating Retention
Dimensions Wire Size: 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions Operating Temperature: -40°C to 105°C, IP67 Water/Dust Sealing
Industry Standards UL 94V-0 Flammability Rating
