M16 7 Pin Male Female Waterproof Connectors Industrial Plastic Circular Data Connector
M16 7 Pin Male Female Waterproof Connectors Industrial Plastic Circular Data Connector
M16 7 Pin Male Female Waterproof Connectors Industrial Plastic Circular Data Connector
M16 7 Pin Male Female Waterproof Connectors Industrial Plastic Circular Data Connector
M16 7 Pin Male Female Waterproof Connectors Industrial Plastic Circular Data Connector
M16 7 Pin Male Female Waterproof Connectors Industrial Plastic Circular Data Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M16
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Material :
Nylon
Copper needles :
Copper alloy
Sealing Material :
Waterproof O-Ring
Protection level :
IP67
Flame-resistant rating :
UL94-V0
Industry Fields :
Instruments & Meters
Description
M16 7 Pin Male Female Waterproof Connectors - Industrial Plastic Circular Data Connector
Product Overview

M16 Male Female 7-Pin Waterproof Automotive Connectors designed for low power signal transmission with reliable performance in demanding industrial environments.

Main Features
  • Push lock quick release system for easy installation

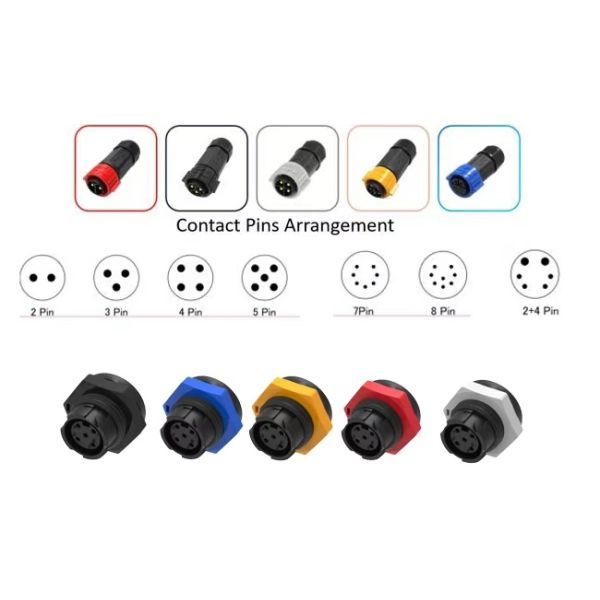

  • Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
  • Field assembly versions: wire to wire and wire to board
  • Cable assembly service supported with custom options available
  • OEM/ODM services welcome
Product Description

M16 7 Pin Male Female Waterproof Connectors, made of industrial-grade plastic with a circular structure, are specially designed for data transmission in industrial scenarios. Integrating waterproof sealing and stable connection characteristics, they are reliable accessories for industrial equipment data transmission, suitable for various industrial data transmission needs.

The 7-pin precise layout optimizes the data transmission path, with tight contact and strong anti-interference ability. It can stably transmit various control data and detection data of industrial equipment, ensuring accurate and delay-free data transmission, meeting the needs of high-frequency data transmission in industrial scenarios.

Adopting male-female plug-in design, the docking is smooth, combined with a reliable waterproof structure, which can resist the invasion of complex environments such as humidity, dust and slight oil pollution in industrial sites, adapting to outdoor industrial scenarios and harsh workshop conditions, and avoiding data transmission interruption caused by environmental factors.

The shell is made of high-strength industrial plastic, with excellent insulation, aging resistance and impact resistance, light weight and durability, adapting to the long-term operation needs of industrial equipment. The M16 standard interface is compatible with conventional industrial data cables, easy to install without complex tools.

Widely used in industrial control, sensors, automation equipment, detection instruments and other industrial scenarios, it provides a stable and safe connection solution for male-female paired data transmission, combining practicality and industrial-grade durability.

Electrical Parameters
Number of Poles 7Pin
Current Rating 5A max.
Voltage Rating 60VAC max
Durability Voltage 500VAC @ 60 s.
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Communications Equipment
  • Heavy Machinery
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Design Specifications
M16 7 Pin Male Female Waterproof Connectors Industrial Plastic Circular Data Connector
M16 7 Pin Male Female Waterproof Connectors Industrial Plastic Circular Data Connector
Frequently Asked Questions
How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Where is your factory located?

Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Can I have custom label?

Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
