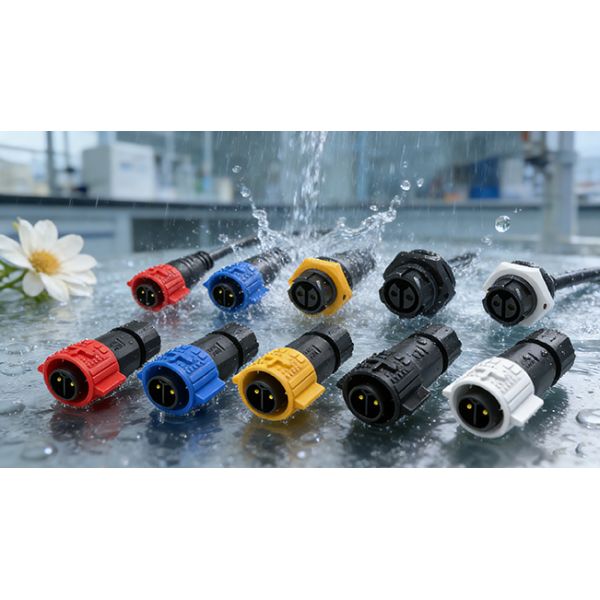

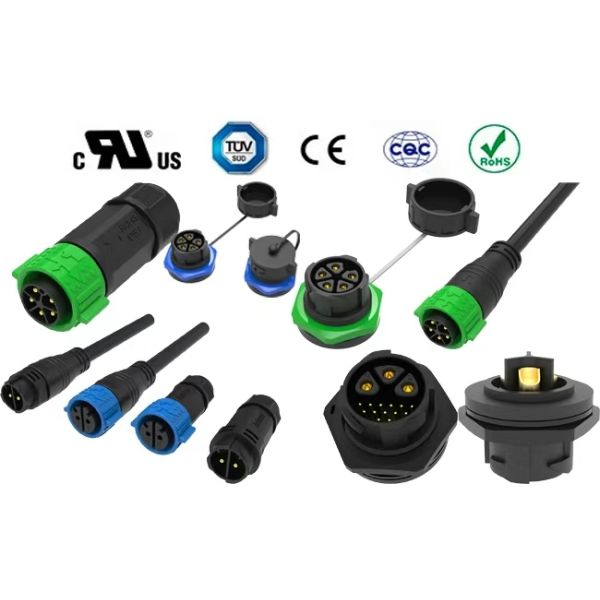

PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors
PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors
PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors
PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors
PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors
PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
9Pin
Current rating :
5A
Material :
PA66
Protection level :
IP67
Contact Material :
Brass Gold-Plated
Temperature :
-40~105℃
Description
PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors
Product Overview

M19 9 Pin Male Cable Connector - Industrial Waterproof Aviation Connector featuring a push lock quick release system for easy connection and reliable performance in demanding environments.

Main Features
  • Push lock quick release system for easy connection
  • Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power applications
  • Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
  • Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
  • Field assembly version with wire to wire and wire to board options
  • 5A current rating for continuous operation
  • Cable assembly service supported with custom options available
  • OEM/ODM services welcome
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Technical Specifications
Core Specifications

PA66 engineering plastic shell, M19 circular size, 9-pin design for low-voltage circuits. Waterproof performance with quick release function, compatible with various low-voltage equipment.

Material Advantages

High-quality PA66 engineering plastic shell with excellent wear resistance, corrosion resistance, high temperature resistance, anti-aging and high toughness properties.

Waterproof Design

Reliable waterproof sealing structure effectively blocks moisture and dust intrusion, preventing short circuits and poor contact in low-voltage circuits.

Quick Release System

Simple operation without additional tools for efficient installation, inspection, repair and replacement in low-voltage equipment scenarios.

9-Pin Transmission

9-pin independent layout with low signal interference, supporting multi-channel low-voltage signal and power synchronous transmission.

Electrical Parameters
Parameter Specification
Number of Poles 9Pin
Current Rating 5A max
Voltage Rating 60VAC max
Durability Voltage 500VAC @ 60s
Technical Parameters
Parameter Specification
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Parameter Specification
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Design Specifications
PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors
Frequently Asked Questions
Are you a factory or trading company?
We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
What payment methods do you accept?
We support mainstream international payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, our standard term is 30% down payment with 70% balance due before shipment.
How do I place an order? What is the process?
The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
