10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data
10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data
10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data
10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data
10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data
10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
8Pin
Gender :
Male to Female
Connector type :
Quick connector
Material :
Nylon
Rated voltage :
300V
Operating temperature :
-40℃-+105℃
Flame-sesistant rating :
UL 94-V0
Color :
Blue,White,Green
Description
10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data
Product Overview

8 Pin Circular Connector M19 Male Female IP67 Waterproof Connectors designed for reliable data transmission in demanding industrial environments.

Core Specifications
  • Rated current: 10A maximum
  • M19 circular size with 8-pin configuration
  • Specifically designed for wire-to-board data transmission
  • Meets both power supply and data transmission requirements
  • Compatible with various data devices and industrial equipment
Key Features
  • Push lock quick release system for easy connection

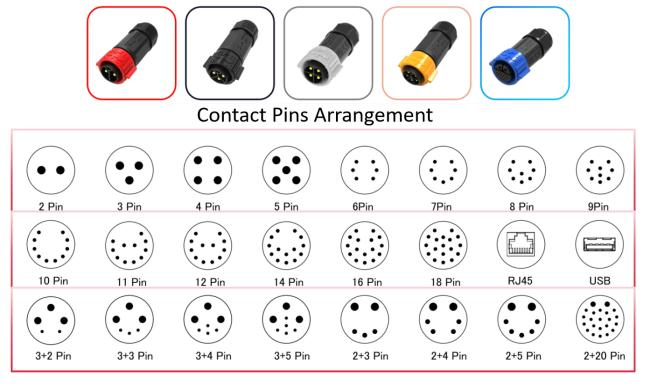

  • Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • Combined power and signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
  • Signal-only configurations: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
  • Field assembly versions with wire-to-wire and wire-to-board options
  • 10A current rating for continuous operation
  • Cable assembly service supported with OEM/ODM customization available
Performance Advantages
  • Push-type locking structure ensures stable docking with automatic locking
  • Prevents accidental disconnection from vibration and external contact
  • 8-pin independent pin layout with low signal interference
  • Efficient multi-channel data synchronous transmission
  • Simplified wiring and assembly processes reduce installation time
  • Standard M19 circular size compatible with most industry-standard interfaces
Technical Specifications
Electrical Parameters
Number of Poles 8Pin
Current Rating 10A max.
Voltage Rating 300VAC max
Durability Voltage 1000VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max. Cable Cross Section Area 0.5mm² ~ 1.5mm²
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Product Design
10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data 10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data
Frequently Asked Questions
Q: What payment methods do you accept?
A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
Q: Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
Q: How can I get samples?
A: We are pleased to offer samples, with freight costs covered by the customer. Please provide your courier account number and detailed shipping address, and we will dispatch samples promptly.
Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market requirements.
