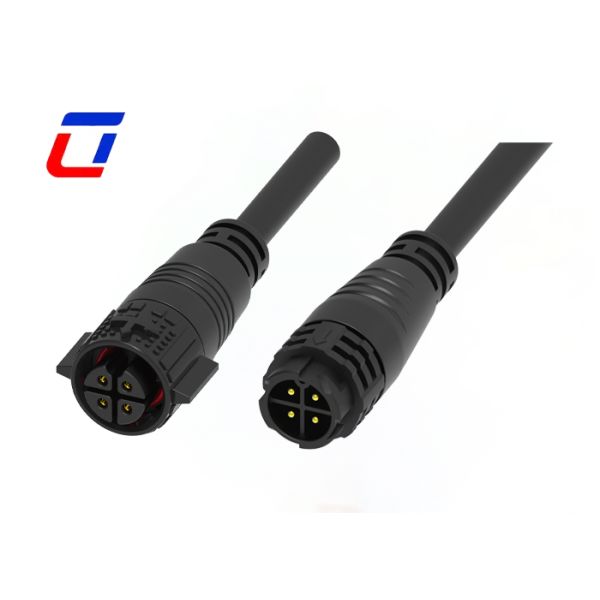

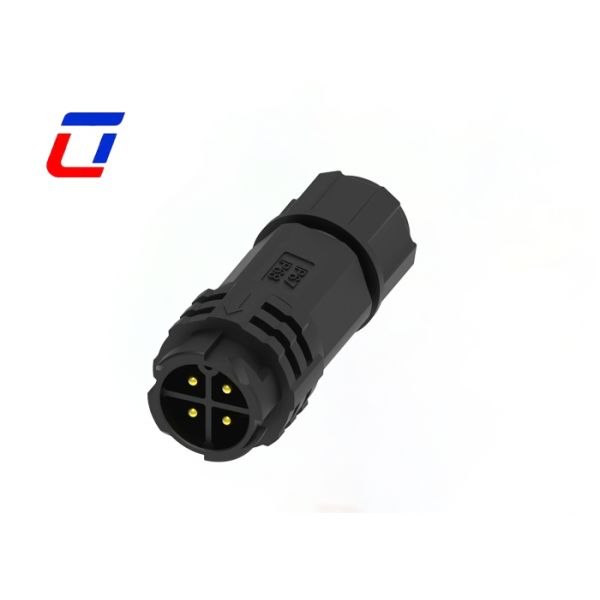

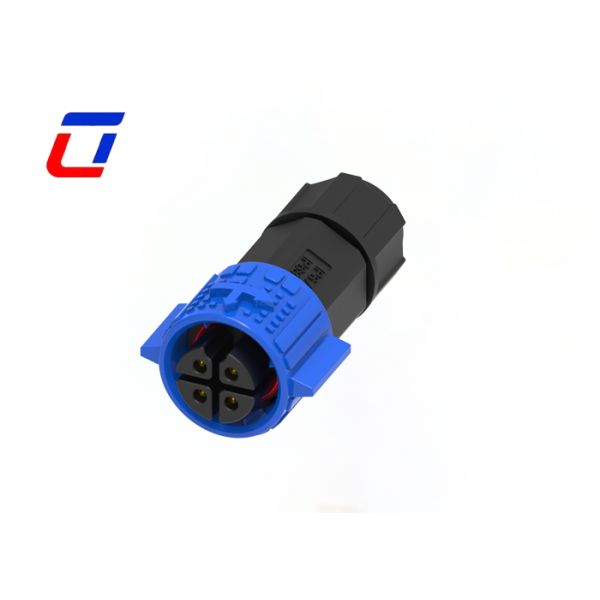

300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
Specifications
Rated voltage :
300V
Payment Terms :
T/T,D/P,L/C,D/A,Western Union
Current rating :
15A
Connector type :
Quick connector
Color :
Red Blue White Black Yellow
Material :
Nylon
Flame-resistant rating :
UL94-V0
Pin :
4Pin
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Gender :
Male to Female
Description
300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
Product Overview

The IP67 waterproof M19 4-pin male-to-female connector is exclusively engineered for outdoor application scenarios, acting as a reliable connection for power and signal transmission in open-air environments. Designed with male-female docking structure for intuitive assembly, it perfectly fits outdoor lighting systems, security equipment, agricultural sensors, and landscape electronic devices, effectively solving transmission issues caused by rain, dew, dust, and sudden temperature changes.

The optimized 4-pin configuration expands its application scope: it supports simultaneous transmission of low-voltage power and dual-channel signals, making it suitable for smart outdoor devices like dimmable LED street lamps, motion-sensing security cameras, and soil moisture detectors. The standard M19 circular housing features a compact size, which can be seamlessly installed on lamp poles, equipment brackets, or outdoor junction boxes, without occupying excessive space while ensuring stable docking.

Main Features
  • Push lock quick release system
  • Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
  • 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
  • Field assembly version: both wire to wire and wire to board options
  • Current rated 20A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome
Electrical Parameters
Number of Poles 4Pin
Current Rating 15A max.
Voltage Rating 300VAC max
Durability Voltage 1000VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Application Industries
  • Growth Lights
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Design Sketch
300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector 300V 15A IP67 Waterproof M19 4 Pin Male To Female Outdoor Power Connector
Frequently Asked Questions
Are you a factory or trading company?
We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Do you support product customization?
Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
How can I get samples?
It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
What shipping methods do you offer? How long is the delivery time?
We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.
