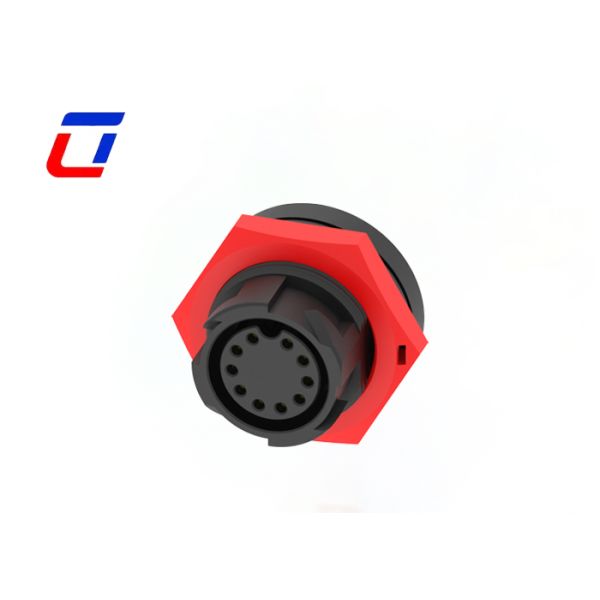

PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector
PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector
PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector
PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector
PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector
PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
10Pin
Material :
Nylon
Current rating :
5A
Rated voltage :
300V
Gender :
Male to Female
Contact Material :
Brass Gold-Plated
Description

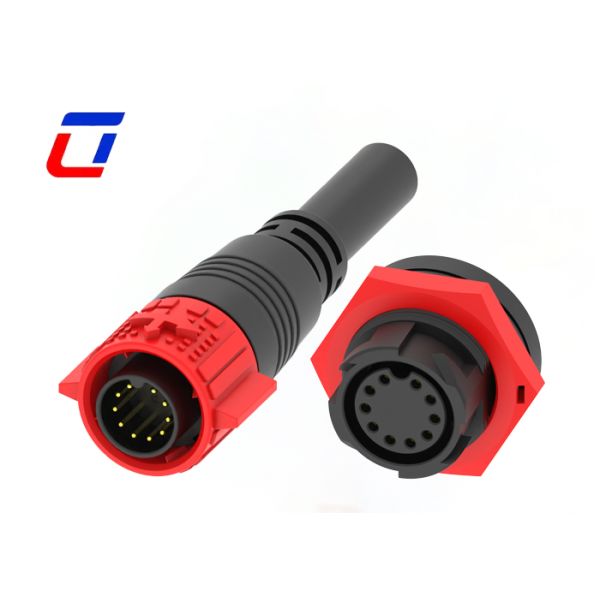

PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector
Product Overview

IP67 M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors designed for reliable signal transmission in demanding outdoor environments.

Key Features
  • M19 circular structure with male-female plug design for outdoor low-power signal transmission
  • 10Pin multi-channel layout for parallel transmission of multiple signal groups
  • Precise positioning to prevent signal misconnection
  • Integrated waterproof sealing with IP67 rating when mated
  • Weather-resistant PA66 engineering plastic shell
  • Wide temperature tolerance: -40℃ to +105℃
  • UV-resistant and anti-aging construction
  • Brass gold-plated pin cores for low contact resistance
  • Snap-on male-female connection with firm locking mechanism
  • Vibration and drop resistant design
Electrical Parameters
Number of Poles 10Pin
Current Rating 5A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²

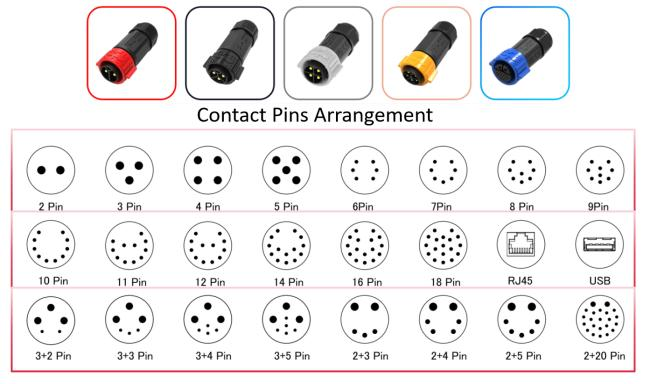

Configuration Options
  • Push lock quick release system
  • Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
  • Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
  • Field assembly versions: both wire to wire and wire to board options
  • Cable assembly service supported with custom options available
  • OEM/ODM services welcome
Application Industries
  • Growth Lights
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Design Specifications
PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Q: How can I get samples?
A: We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address for immediate shipment.
Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
