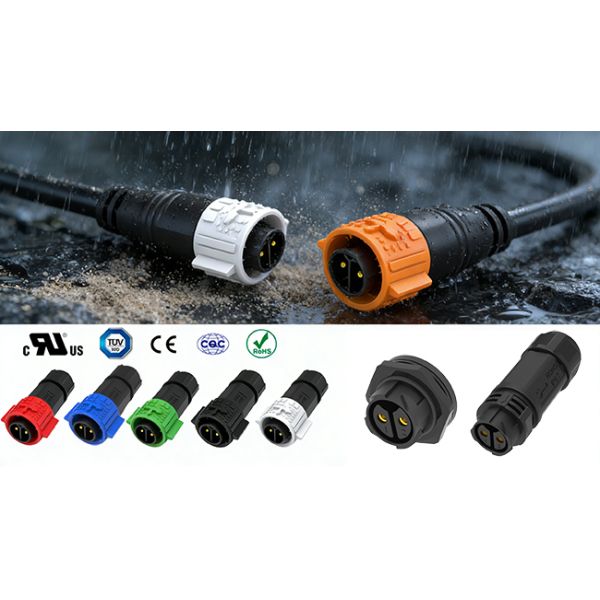

M19 14 Pin Low Voltage LED Connectors ODM Waterproof Push Lock Outdoor Connectors
M19 14 Pin Low Voltage LED Connectors ODM Waterproof Push Lock Outdoor Connectors
M19 14 Pin Low Voltage LED Connectors ODM Waterproof Push Lock Outdoor Connectors
M19 14 Pin Low Voltage LED Connectors ODM Waterproof Push Lock Outdoor Connectors
M19 14 Pin Low Voltage LED Connectors ODM Waterproof Push Lock Outdoor Connectors
M19 14 Pin Low Voltage LED Connectors ODM Waterproof Push Lock Outdoor Connectors
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
14Pin
Current rating :
5A
Material :
Nylon
Protection level :
IP67
Flame-resistant rating :
UL94-V0
Sealing Material :
Waterproof O-Ring
Description

14 Pin Male Female Connector M19 300V Cable Connectors Waterproof


Quick Description


This M19 14-Pin Push-Lock Waterproof Connector, with gold-plated technology and OEM customization, is a premium wire connector for efficient, stable connections in various devices. Integrating push-lock convenience, gold-plated contacts' superior conductivity and M19 compatibility, it offers water/dust/corrosion resistance and stable connectivity. Suitable for industrial control, outdoor communications, automotive electronics, security monitoring, etc. Its core advantages are as follows:

1. Push-to-Lock Mechanism: Ergonomic push-lock design enables precise mating/locking with a light press and quick disconnection via unlock button, no tools needed. Boosts installation/maintenance efficiency and prevents accidental detachment from vibration/pull, ideal for frequent plugging/unplugging and external force-exposed scenarios.

2. 14-Pin Gold-Plated Contacts: 14-pin layout meets multi-channel signal/power synchronous transmission. High-purity copper alloy base with gold plating minimizes contact resistance, reduces loss/power consumption, enhances oxidation/corrosion resistance, extends service life for harsh environments (high humidity, salt spray).

3. Excellent Waterproof Performance: Integrated sealing structure + high-quality gaskets provide strong water/dust resistance, blocking moisture, dust, oil stains. Ensures stable wire-to-board connection in humid environments (outdoor rain, damp workshops, bathroom appliances), avoiding short circuits/signal interruptions.

4. Quick-Connect Structure: Built-in quick-connect mechanism allows tool-free manual mating/separation, simple and efficient. Clear buckle feedback verifies secure connection, preventing poor contact. Shortens wiring time and facilitates later maintenance, reducing labor/time costs.


Main Features


  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
  • 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
  • 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
  • Field assembly version:both wire to wire and wire to board options
  • Current rated 5A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Electrical Parameters
Number of Poles 14Pin
Current Rating 5 Amax.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.


Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2


Application industries


  • Growth Lights
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Design Sketch


M19 14 Pin Low Voltage LED Connectors ODM Waterproof Push Lock Outdoor Connectors

M19 14 Pin Low Voltage LED Connectors ODM Waterproof Push Lock Outdoor Connectors


FAQ


1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

3. Q: How can I get samples?

A:It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
