3+5 Pin M19 Male Female Cable Connectors 300V Waterproof Quick Disconnect Connectors
3+5 Pin M19 Male Female Cable Connectors 300V Waterproof Quick Disconnect Connectors
3+5 Pin M19 Male Female Cable Connectors 300V Waterproof Quick Disconnect Connectors
3+5 Pin M19 Male Female Cable Connectors 300V Waterproof Quick Disconnect Connectors
3+5 Pin M19 Male Female Cable Connectors 300V Waterproof Quick Disconnect Connectors
3+5 Pin M19 Male Female Cable Connectors 300V Waterproof Quick Disconnect Connectors
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Current rating :
15A
Rated voltage :
300V
Pin :
3+5Pin
Connector type :
Quick connector
Material :
Nylon
Contact Material :
Brass Gold-Plated
Description

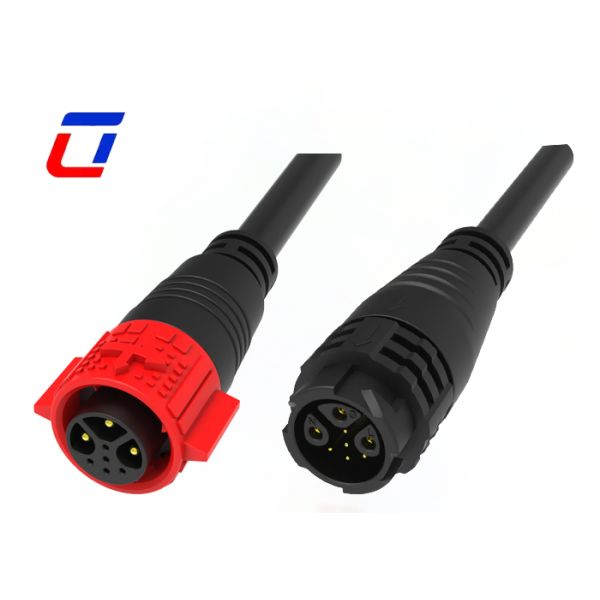

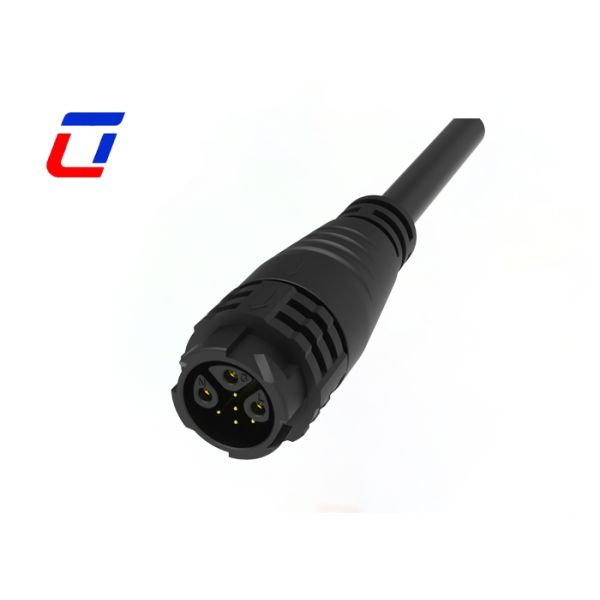

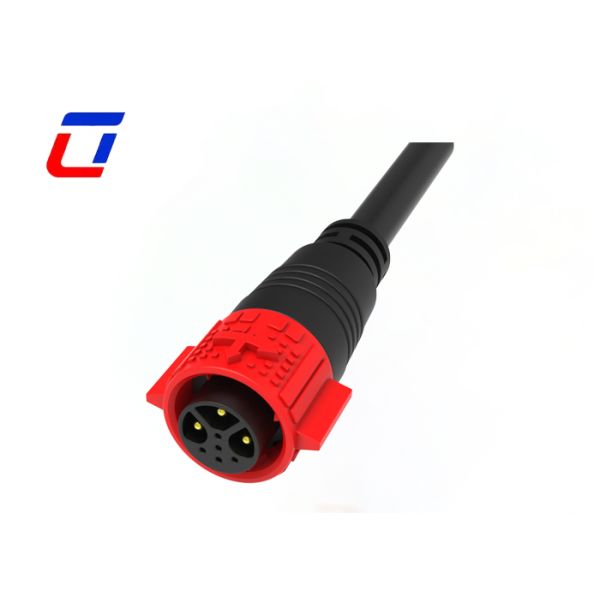

15A Waterproof Data Cable Connector 3 +5 Pin M19 IP67 Circular Connectors


Quick Description


  • Product Overview: A professional-grade connectivity option designed for male-female paired cable connections, featuring 3+5 pin configuration, M19 standard size, and 300V rated voltage. Specialized in quick disconnect functionality, it realizes efficient assembly and disassembly while ensuring reliable power and signal transmission.
  • Core Specifications: 3 power pins + 5 data pins separated layout; rated voltage 300V,industrial low-voltage application scenarios; supports quick disconnect operation, no tools required for pairing/unpairing; IP67 waterproof and dustproof rating, suitable for harsh indoor/outdoor environments.
  • Key Advantages: Male-female precise pairing design avoids misinsertion; quick disconnect mechanism improves maintenance and replacement efficiency; high-quality insulating material ensures 300V voltage stability and safety; reinforced housing with sealing structure resists water splashes and dust intrusion.
  • Application Scenarios: Widely used in industrial control systems, outdoor lighting equipment, low-voltage power distribution devices, and electronic equipment requiring frequent disconnection, perfectly matching the demand for quick and stable connection in 300V low-voltage scenarios.


Electrical Parameters
Number of Poles 3+5Pin
Current Rating 15A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.


Main Features


  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
  • 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
  • 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
  • Field assembly version:both wire to wire and wire to board options
  • Current rated 20A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2


Application industries


  • Growth Lights
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Design Sketch
